SET-C系列伺服式张力器是由传统的被动送线方式改变成主动送线方式,根据用户要求可选择分两段可调张力的张力器，通过更换弹簧其张力范围值可从1g - 1000g,并自带反馈张力稳定系统,能自动实现张力稳定平衡。张力不受绕线速度、线罩、滑轮、毛毡等因素的影响，张力特别稳定，调整简单方便。
型号规格：
|
型 号 |
使用线径范围（mm） |
张力范围（g.f） |
|
SET-C-100 |
0.01-0.12 |
1-100 |
|
SET-C-200 |
0.02-0.17 |
2-200 |
|
SET-C-300 |
0.03-0.22 |
5-300 |
|
SET-C-600 |
0.06-0.35 |
20-600 |
|
SET-C-1000 |
0.10-0.45 |
30-1000 |

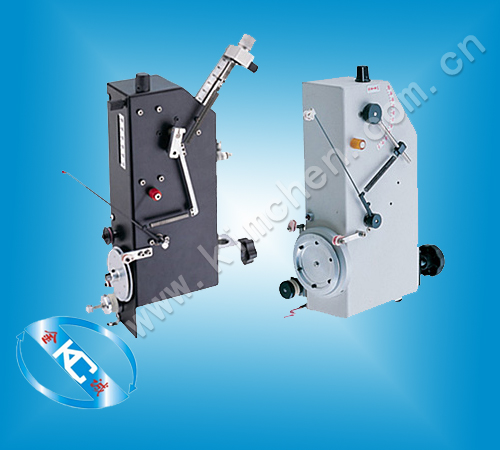

Servo Tension Controller SET-C Series
Servo-type tension device is sent from the traditional passive-line change to take the initiative to send lines from the motor, by replacing the spring tension to change its value, this product comes with tension feedback stabilization system that can automatically tension stable equilibrium. Tension is not speed, wire cover, pulleys, and felt the impact of tension in particular stable and easy to adjust
Specification:
|
Model |
Applied wire diamiter(mm) |
Tension scope(g.f) |
|
SET-C-100 |
0.01-0.12 |
1-100 |
|
SET-C-200 |
0.02-0.17 |
2-200 |
|
SET-C-300 |
0.03-0.22 |
5-300 |
|
SET-C-600 |
0.06-0.35 |
20-600 |
|
SET-C-1000 |
0.10-0.45 |
30-1000 |
