潜水泵型号及参数说明

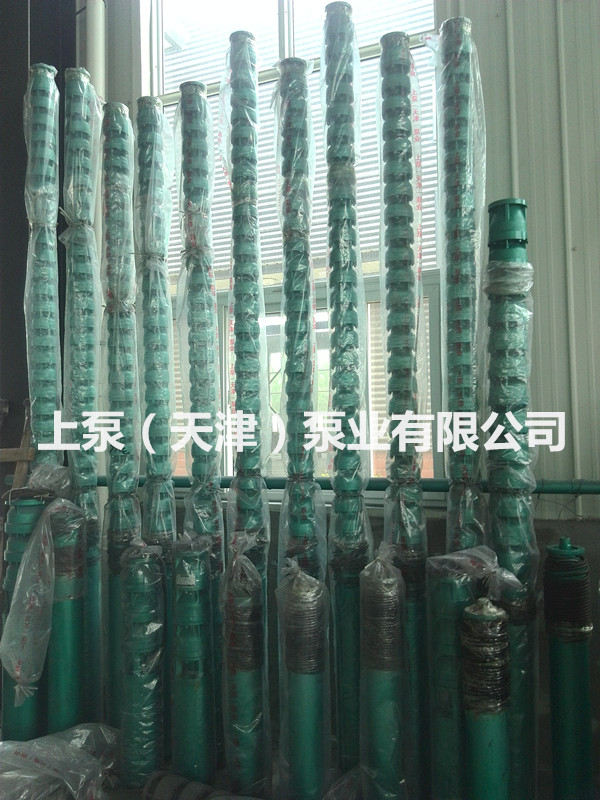

潜水泵的型号及参数主要根据井径、流量、扬程、配用功率的不同而不同，就奥特泵业型号为AT250QJ80-300/10-110Kw的潜水泵来说明，AT表示的是奥特泵业的产品简称，250表示使用井径不小于250毫米，QJ表示井用潜水泵（潜井的首字母），80表示流量为80m3/h（即80吨每小时），300表示扬程为300米，10表示叶轮串联级数为10级，110表示配用功率为110Kw。
型号说明：
□ - QJ D - □ - □ - □
| | | | | | 电机功率(KW)
| | | | | 额定扬程(m)
| | | | 额定流量(m3/h)
| | | 配单相电机(配三相不标注)
| | 污水潜水电泵
| 口径
以下是一些常见潜水泵型号及参数的说明表格仅供参考
|
型号 |
|
|
功率 |
电压 |
扬程 |
流量 |
配管 |
|
|
型号 |
功率 |
电压 |
扬程 |
流量 |
配管 |
|
|
QDX1.5-16-0.37 |
0.37 |
220 |
16 |
1.5 |
25 |
|
QDX40-8-1.5 |
1.5 |
220 |
8 |
40 |
80 |
|
|
|
QDX1.5-26-0.37 |
0.37 |
220 |
26 |
1.5 |
25 |
|
QDX65-4.5-1.5 |
1.5 |
220 |
4.5 |
65 |
100 |
|
|
|
QDX3-14-0.37 |
0.37 |
220 |
14 |
3 |
25 |
|
QDX100-3-1.5 |
1.5 |
220 |
3 |
100 |
160 |
|
|
|
QDX1.5-28-0.40 |
0.40 |
220 |
28 |
1.5 |
25 |
|
QDX6-40-2.2 |
2.2 |
220 |
40 |
6 |
40 |
|
|
|
QDX3-15-0.40 |
0.40 |
220 |
15 |
3 |
25 |
|
QDX10-32-2.2 |
2.2 |
220 |
32 |
10 |
50 |
|
|
|
QDX1.5-32-0.55 |
0.55 |
220 |
32 |
1.5 |
25 |
|
QDX25-17-2.2 |
2.2 |
220 |
17 |
25 |
65 |
|
|
|
QDX3-18-0.55 |
0.55 |
220 |
18 |
3 |
32 |
|
QDX40-10-2.2 |
2.2 |
220 |
10 |
40 |
80 |
|
|
|
QDX5-16-0.55 |
0.55 |
220 |
16 |
5 |
40 |
|
QDX65-7-2.2 |
2.2 |
220 |
7 |
65 |
100 |
|
|
|
QDX6-14-0.55 |
0.55 |
220 |
14 |
6 |
40 |
|
QDX100-4.5-2.2 |
2.2 |
220 |
4.5 |
100 |
160 |
|
|
|
QDX10-10-0.55 |
0.55 |
220 |
10 |
10 |
50 |
|
QX6-18-0.75 |
0.75 |
380 |
18 |
6 |
40 |
|
|
|
QDX1.5-32-0.75 |
0.75 |
220 |
32 |
1.5 |
25 |
|
QX15-10-0.75 |
0.75 |
380 |
10 |
15 |
50 |
|
|
|
QDX3-24-0.75 |
0.75 |
220 |
24 |
3 |
32 |
|
QX25-6-0.75 |
0.75 |
380 |
6 |
25 |
65 |
|
|
|
QDX6-18-0.75 |
0.75 |
220 |
18 |
6 |
40 |
|
QX40-4-0.75 |
0.75 |
380 |
4 |
40 |
80 |
|
|
|
QDX10-15-0.75 |
0.75 |
220 |
15 |
10 |
50 |
|
QX3-30-1.1 |
1.1 |
380 |
30 |
3 |
32 |
|
|
|
QDX15-10-0.75 |
0.75 |
220 |
10 |
15 |
50 |
|
QX6-24-1.1 |
1.1 |
380 |
24 |
6 |
40 |
|
|
|
QDX20-10-0.75 |
0.75 |
220 |
10 |
20 |
65 |
|
QX10-18-1.1 |
1.1 |
380 |
18 |
10 |
50 |
|
|
|
QDX25-6-0.75 |
0.75 |
220 |
6 |
25 |
65 |
|
QX15-14-1.1 |
1.1 |
380 |
14 |
15 |
50 |
|
|
|
QDX40-3.5-0.75 |
0.75 |
220 |
3.5 |
40 |
80 |
|
QX25-9-1.1 |
1.1 |
380 |
9 |
25 |
65 |
|
|
|
QDX1.5-35-0.85 |
0.85 |
220 |
35 |
1.5 |
25 |
|
QX40-5.5-1.1 |
1.1 |
380 |
5.5 |
40 |
80 |
|
|
|
QDX3-28-0.85 |
0.85 |
220 |
28 |
3 |
32 |
|
QX65-3.5-1.1 |
1.1 |
380 |
3.5 |
65 |
100 |
|
|
|
QDX6-24-0.85 |
0.85 |
220 |
24 |
6 |
40 |
|
QX6-32-1.5 |
1.5 |
380 |
32 |
6 |
40 |
|
|
|
QDX10-16-0.85 |
0.85 |
220 |
16 |
10 |
50 |
|
QX10-24-1.5 |
1.5 |
380 |
24 |
10 |
50 |
|
|
|
QDX25-10-0.85 |
0.85 |
220 |
10 |
25 |
65 |
|
QX15-18-1.5 |
1.5 |
380 |
18 |
15 |
50 |
|
|
|
QDX3-30-1.1 |
1.1 |
220 |
30 |
3 |
32 |
|
QX25-12-1.5 |
1.5 |
380 |
12 |
25 |
65 |
|
|
|
QDX6-24-1.1 |
1.1 |
220 |
24 |
6 |
40 |
|
QX40-8-1.5 |
1.5 |
380 |
8 |
40 |
80 |
|
|
|
QDX10-18-1.1 |
1.1 |
220 |
18 |
10 |
50 |
|
QX65-4.5-1.5 |
1.5 |
380 |
4.5 |
65 |
100 |
|
|
|
QDX15-14-1.1 |
1.1 |
220 |
14 |
15 |
50 |
|
QX100-3-1.5 |
1.5 |
380 |
3 |
100 |
160 |
|
|
|
QDX25-9-1.1
|
1.1 |
220 |
9 |
25 |
63 |
|
QX6-40-2.2 |
1.5 |
380 |
40 |
6 |
40 |
|
|
|
QDX40-5.5-1.1
|
1.1 |
220 |
5.5 |
40 |
80 |
|
QX10-32-2.2 |
2.2 |
380 |
32 |
10 |
50 |
|
|
|
QDX65-3.5-1.1 |
1.1 |
220 |
3.5 |
65 |
100 |
|
QX25-17-2.2 |
2.2 |
380 |
17 |
25 |
65 |
|
|
|
QDX6-32-1.5 |
1.5 |
220 |
32 |
6 |
40 |
|
QX40-10-2.2 |
2.2 |
380 |
10 |
40 |
80 |
|
|
|
QDX10-24-1.5 |
1.5 |
220 |
24 |
10 |
50 |
|
QX65-7-2.2 |
2.2 |
380 |
7 |
65 |
100 |
|
|
|
QDX15-18-1.5 |
1.5 |
220 |
18 |
15 |
50 |
|
QX100-4.5-2.2 |
2.2 |
380 |
4.5 |
100 |
160 |
|
|
|
QDX25-12-1.5 |
1.5 |
220 |
12 |
25 |
65 |
|
以上表格中电源频率50Hz 同步转速2860r/min |
|||||||
|
性质 |
功率 |
转速 |
电压 |
||||||
|
口径 |
流量 |
扬程 |
||||||||
|
25-8-22 |
25 |
8 |
22 |
1.1 |
2900 |
380 |
||||
|
32-10-15 |
32 |
10 |
15 |
1.5 |
2900 |
〃 |
||||
|
40-15-30 |
40 |
15 |
30 |
2.2 |
1900 |
〃 |
||||
|
50-20-7 |
50 |
20 |
7 |
0.75 |
1450 |
〃 |
||||
|
50-20-15 |
50 |
20 |
15 |
1.5 |
2900 |
〃 |
||||
|
50-15-25 |
50 |
15 |
25 |
2.2 |
2900 |
〃 |
||||
|
50-18-30 |
50 |
18 |
30 |
3 |
2900 |
〃 |
||||
|
65-25-15 |
65 |
25 |
15 |
2.2 |
2900 |
〃 |
||||
|
65-25-30 |
65 |
25 |
30 |
4 |
2900 |
〃 |
||||
|
80-40-7 |
80 |
40 |
7 |
2.2 |
1450 |
〃 |
||||
|
80-40-15 |
80 |
40 |
15 |
4 |
2900 |
〃 |
||||
|
80-65-25 |
80 |
65 |
25 |
7.5 |
2900 |
〃 |
||||
|
100-85-10 |
100 |
85 |
10 |
4 |
1450 |
〃 |
||||
|
100-100-15 |
100 |
100 |
15 |
7.5 |
1450 |
〃 |
||||
|
100-85-20 |
100 |
85 |
20 |
7.5 |
1450 |
〃 |
||||
|
100-100-25 |
100 |
100 |
25 |
11 |
1450 |
〃 |
||||
|
100-100-35 |
100 |
100 |
35 |
15 |
1450 |
〃 |
||||
|
125-115-15 |
125 |
115 |
15 |
15 |
1450 |
〃 |
||||
|
150-180-15 |
150 |
180 |
15 |
15 |
1450 |
〃 |
||||
|
150-180-20 |
150 |
180 |
20 |
18.5 |
1450 |
〃 |
||||
|
150-180-30 |
150 |
180 |
30 |
22 |
1450 |
〃 |
||||
|
150-180-35 |
150 |
180 |
35 |
30 |
1450 |
〃 |
||||
|
200-300-10 |
200 |
300 |
10 |
11 |
980 |
〃 |
||||
|
200-300-15 |
200 |
300 |
15 |
22 |
1450 |
〃 |
||||
|
200-300-20 |
200 |
300 |
20 |
30 |
1450 |
〃 |
||||
|
200-300-25 |
200 |
300 |
25 |
37 |
1450 |
〃 |
||||
|
250-600-10 |
250 |
600 |
10 |
30 |
980 |
〃 |
||||
|
250-600-12 |
250 |
600 |
12 |
37 |
1450 |
〃 |
||||
|
250-600-15 |
250 |
600 |
15 |
45 |
1450 |
〃 |
||||
|
250-600-20 |
250 |
600 |
20 |
55 |
1450 |
〃 |
||||
|
250-600-25 |
250 |
600 |
25 |
75 |
1450 |
〃 |
||||
|
300-800-12 |
300 |
800 |
12 |
45 |
980 |
〃 |
||||
|
300-480-15 |
300 |
480 |
15 |
45 |
1450 |
〃 |
||||
|
300-600-20 |
300 |
600 |
20 |
55 |
1450 |
〃 |
||||
|
300-800-20 |
300 |
800 |
20 |
20 |
1450 |
〃 |
||||
