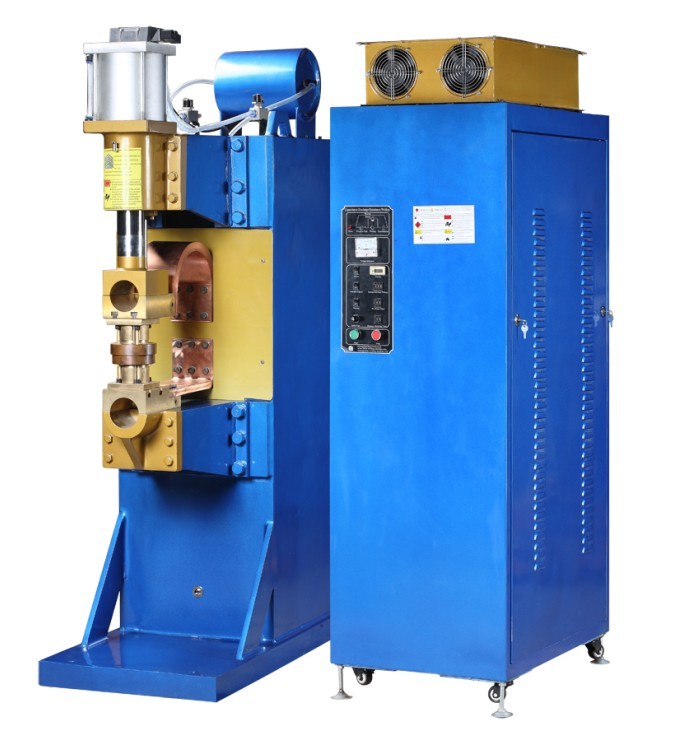

DR系列电容储能点凸焊机
DR Series Capacitive Discharge Spot & Projection Welding Machine
与其它焊接方式相比，电容储能焊机的主要优点：
1.焊接能量释放快，瞬间放电，特别适合焊接各种容易导电的金属材料，如铝，铜等。
2.焊接热能集中，影响区域小，焊接效果美观，主要适用于各种不锈钢厨具，餐具等的焊接。
3.采用日本进口黑金刚电容，可长时间重复充电，再放电，能量损失小，省电90%以上,广泛应用于工业中的各种凸点式焊接,尤其是各种多凸点式焊接。如汽车滤清器，离合器等的焊接。
The Advantages of Capacitive Discharge Welders Over other Welder Types:
1.Quick energy release for welding highly conductive metals such as aluminium,copper,and so on.
2.Small heat affected weld zones,beautiful welding quality,mainly used for welding various stainless steel product.
3.Adopted Japanese original capacitor,repeatable energy release independent of line voltage fluctuations,save more than 90% energy,widely used for all kinds of industrial projection welding,especially for multi-spot projection welding.Such as auto filter, Clutch,and so on.
主要技术参数：
Main Technical Specification:
|
参数 Parameter |
输入电压Input Voltage |
焊接功率Welding Power |
电容量Capacitance |
储能量Energy Storage |
焊接臂长 Welding Arm Length |
电极行程Electrode Stroke |
电极压力 Electrode Pressure |
总重量 Total Weight |
|
型号 Model No. |
||||||||
|
DR-2KVA |
220V |
2KVA |
4500μF |
500J |
120MM |
50MM |
1000N |
280KG |
|
DR-3KVA |
220V |
3KVA |
13500μF |
1500J |
380MM |
60MM |
2500N |
460KG |
|
DR-5KVA |
220V/380V |
5 KVA |
27000μF |
3000J |
380MM |
60MM |
3900N |
700KG |
|
DR-7KVA |
220V/380V |
7 KVA |
47000μF |
4500J |
380MM |
60MM |
3900N |
850KG |
|
DR-10KVA |
220V/380V |
10 KVA |
79000μF |
8000J |
380MM |
60MM |
6280N |
1000KG |
|
DR-12KVA |
220V/380V |
12 KVA |
98000μF |
10000J |
380MM |
60MM |
6280N |
1200KG |
|
DR-16KVA |
220V/380V |
16KVA |
120000μF |
12000J |
380MM |
60MM |
12000N |
1500KG |
|
DR-20KVA |
220V/380V |
20KVA |
150000μF |
15000J |
380MM |
60MM |
15000N |
1800KG |
