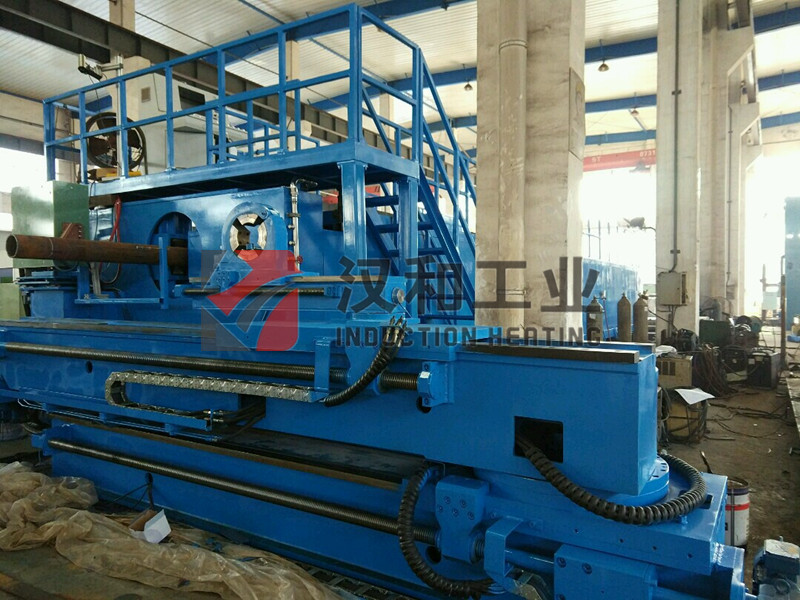

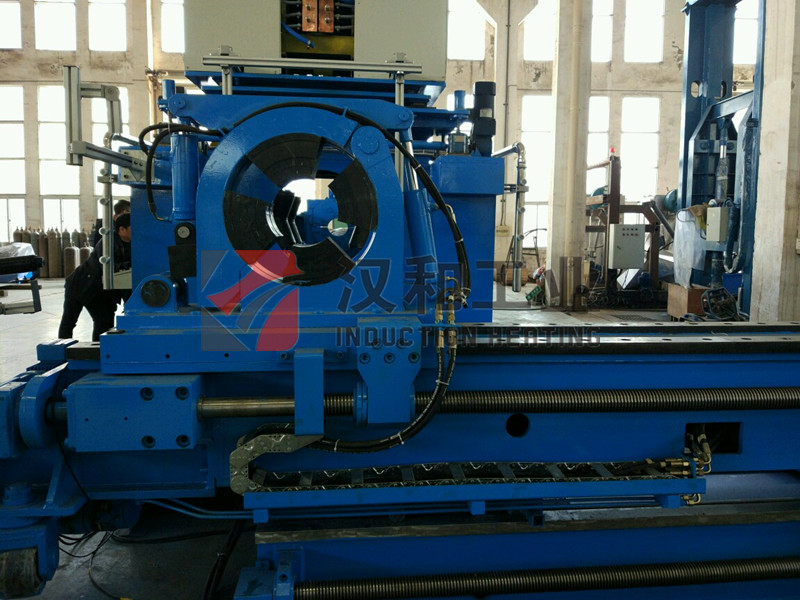

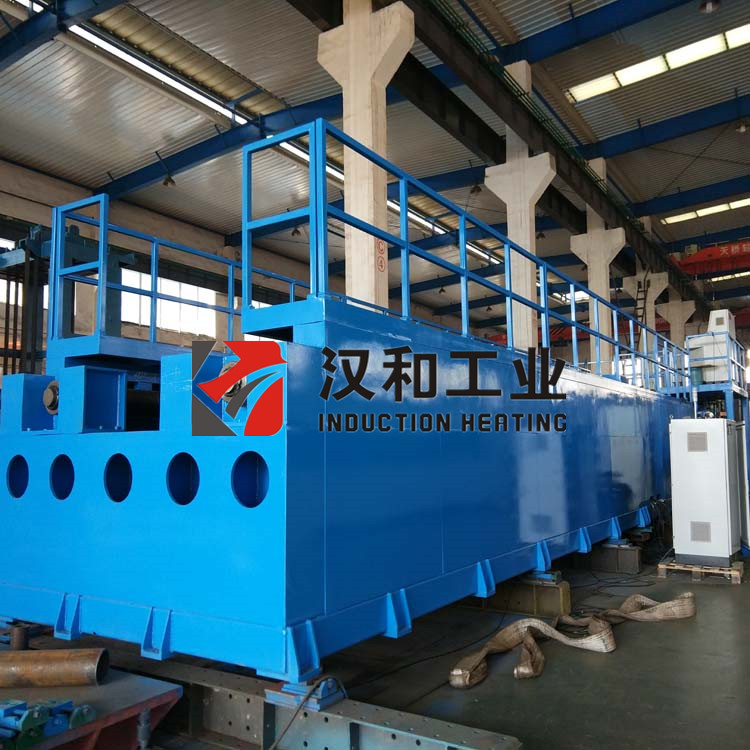

产品说明：
一、用于used in
l 各种圆形或方型钢管，不锈钢管，工字钢热弯，适用于石油，化工，冶金，钢结构，锅炉等工程。
It can be used for the hot bending of various types of round or square steel pipe, stainless steel pipe and joist steel;
and is applicable to petroleum,chemical industry, metallurgy, steel structure and boiler etc.
二、主要特点Main features
l 大吨位液压或链条机械式推管，弯管过程稳定
Large-tonnage hydraulic or (chain type) mechanical pipe pushing, stable during the pipe bending;
l 可调整式摇臂，适应多种半径调节
Adjustable rocker arm, adapt to various types of radius adjustment;
l 西门子PLC编程控制，对调整半径 弯曲角度 弯管速度进行控制
Siemens PLC programmable control is adopted to control the adjusted radius, angle of bending and speed of pipe bending;
l 西门子PLC编程控制加热温度 冷却流量进行控制
Siemens PLC programmable control is used to control the heating temperature and cooling flow;
l PC工业电脑集成监控弯管工艺参数，确保弯管一致性
PC industrial computer is used for integrated monitoring of technological parameters of the bent pipe,
to guarantee the consistency of bent pipes.
l 超大容量内存可存贮多组工艺
Extra-large memory can store various groups of technology.
小型弯管机技术参数表：
Technical parameters of small-size pipe bender:
小型弯管机技术参数表：
|
型 号
|
WGY-219 |
WGY-325 |
WGY-426 |
WGY-530 |
WGY-630 |
|
管径范围 (mm)
|
￠76-219 |
￠76-325 |
￠108-426 |
￠159-529 |
￠159-630 |
|
最大弯管壁厚 (mm)
|
18/25/40 |
18/25/40 |
18/25/40 |
18/25/40 |
18/25/40 |
|
最大推力 (T)
|
60 |
70 |
100 |
120 |
16 |
|
弯曲半径 R
|
≥1.5D |
≥2.5D |
≥3 D |
≥3 D |
|
|
弯曲角度
|
0-180 |
0-180 |
0-180 |
0-180 |
0-180 |
|
弯管速度 mm/s
|
0.3-4 |
0.25-3 |
0.25-3 |
0.2-3 |
0.2-3 |
|
快退速度 mm/min
|
1000 |
1000 |
1000 |
1000 |
1000 |
|
感应加热功率 KW
|
160 |
200 |
250 |
300 |
400 |
大型弯管机技术参数表：
|
型 号
|
WGY-720 |
WGY-830 |
WGY-1020 |
WGY-1220 |
WGY-1420 |
|
管径范围 (mm)
|
￠219-720 |
￠219-830 |
￠426-1020 |
￠529-1220 |
￠630-1420 |
|
最大弯管壁厚 (MM) |
18/25/40 |
18/25/40 |
18/25/40 |
18/25/40 |
18/25/40 |
|
最大推力 (T)
|
180 |
220 |
260 |
300 |
350 |
|
弯曲半径 R
|
≥3 D |
≥3 D |
≥3 D |
≥3 D |
≥3 D |
|
弯曲角度
|
0-180 |
0-180 |
0-180 |
0-180 |
0-180 |
|
弯管速度 mm/s
|
0.15-2.5 |
0.15-2.5 |
0.15-2.5 |
0.15-2.5 |
0.15-2.5 |
|
快退速度 mm/min
|
800 |
800 |
800 |
800 |
800 |
|
感应加热功率 KW
|
500 |
550 |
600 |
700 |
800 |
其他规格可以定制。
