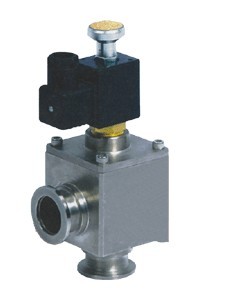

  DYC-JQ型电磁真空压差阀是机械真空泵安全阀，安装于机械真空泵的进气口，并与泵同步开启和关闭。当泵停止工作或电源突然中断时，阀门利用大气压力使阀板自动关闭，使真空系统保持真空并将大气充入泵腔内，从而避免泵油逆向流动而污染真空系统。适用介质为纯净空气和非腐蚀性气体。


■  DYC-JQ
Electro-vacuum  Differential  Pressure  Valve

    ■  DYC-JQ  electro-vacuum  differential  Pressure  valve  is  a  safely  valve  for  mechanical  vacuum  pump.  It  is  mounted  at  the  intake  nozzle  of  mechanical  vacuum  pump,  synchronously  opened  and  closed  with  the  pump.  In  case  that  pump  stops  working  or  power  supply  is  suddenly  broken  off,  valve  disc  will  be  closed  automatically  under  atmospheric  pressure,  to  keep  the  vacuum  system  vacuum  and  the  air  charged  into  pump  cavity,  thus  to  prevent  pump  oil  from  reverse  flow  that  can  pollute  the  vacuum  system.  Applicable  medium  can  be  pure  air  or  noncorrosive  gases.


■  主要技术性能
Main  Technical  Performance

    ■

■

■  　适用范围：Applicability  　105～10-2Pa
　阀门漏率：Valve  Leak  Rate    　≤1.3×10-2Pa.L/S.
　适用温度：Applicable  Temperature  　-30～+50℃
　线围温升：Coil  Temperature  Rise  　≤65℃
　开闭时间：Open-close  Time    　≤3S
　电源电压：Mains  Voltage    　220V/50Hz



■  主要零件材料
Materials  of  Main  Parts

    ■

■    阀体、阀盖、阀板：碳钢或铝合金
隔膜：丁腈橡胶加涤纶绸

Body,  bonnet  and  disc:  carbon  steel  or  aluminium  alloy
Diaphragm:  NBR  and  terylene  silk


CONSTRUCTION  FIGHTS  (mm)

■  外形及连接尺寸(mm)
Overall  and  Connection  Dimensions(mm)


■  活套法兰连接(GB6070　图一)
    Model
型号  DN  Do  D  D2  n-φc  A  H
DYC-JQ50  50  90  110  55  4-φ9  70  203
DYC-JQ63  63  105  130  68  4-φ9  88  226
DYC-JQ80  80  125  145  85  8-φ9  98  260
DYC-JQ100  100  145  165  105  8-φ9  108  282
DYC-JQ160  160  200  225  165  8-φ12  158  350

  ■  快卸法兰连接(GB4982  图二)
    Model
型号  DN  D1  D  A  H  B
DYC-JQ16  16  17.2  30  40  160  55
DYC-JQ25  25  26.2  40  50  170  60
DYC-JQ32  32  34.2  55  58  179  60
DYC-JQ40  40  41.2  55  65  187  70
DYC-JQ50  50  52.2  75  70  203  85

  ■  方体螺纹连接(JB919  图三)
    Model
型号  DN  Do  D2  h  B  H  n-d
DYC-JQ16  16  42  22  28  48  148  4-M5
DYC-JQ25  25  55  29  35  58  155  4-M6
DYC-JQ32  32  64  36  40  68  160  4-M6
DYC-JQ40  40  70  44  44  80  166  4-M6
DYC-JQ50  50  90  55  56  94  189  4-M8
DYC-JQ65  65  105  70  65  115  205  4-M8
DYC-JQ80  80  125  85  75  140  250  4-M8




　　　
