? 设计结构简单轻巧，操作简便省力

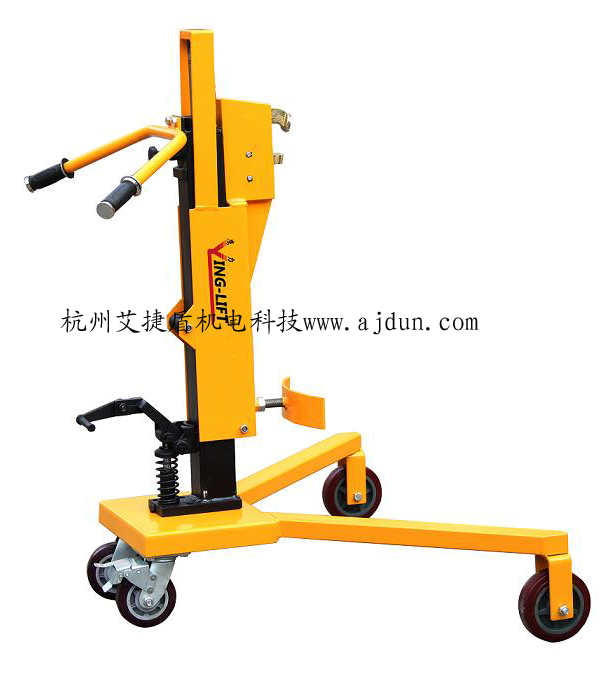

? Simple-and-light-structure design, easy to operate and saves effort
? 叼扣式鹰嘴结构，适合钢制油桶和塑料油桶，高质量油缸，可提升高度300mm
? Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, high lifting speed, maximum lifting height:300mm
? 提升过程中鹰嘴自动夹紧油桶，工作安全可靠
? Automatic clamping tight the oil drum during lifting which is safety and reliable
? A型可以上磅秤，适合磅秤深度550mm，宽度680mm，高度180mm
? A type can be loaded onto platform scale 550Depth x680Width x180mmHeight
? B型可进入深度600mm，宽度920mm的托盘，进行装卸油桶
? B type can be used with pallet 600mmDepth x920mmWidth for loading & unloading oil drums
? C型可进入深度800mm，宽度1200mm的托盘，进行装卸油桶
? C type can be used with pallet 800mmDepth x1200mmWidth for loading & unloading oil drums
? 适用于化工、食品车间、染料、涂料、胶黏剂、石油、食油等流质、液体的搬运，装卸等使用。
? Applicable for chemical plants and food plants for transferring, loading & unlo
| 型号 Model |
额定负载 Loading Weight (KG) |
净重 Net Weight (KG) |
脚轮规格 Wheel Dimension (mm) |
前支腿内、外宽 Inner/Outer Width of Front Supporting Leg (mm) |
整车 尺寸 Outline Dimension (mm) |
提升高度 Lifting Height（mm） |
| DT350C | 350 | 55 | Ф150*50 Ф125*50 | 1200、1400 | 1400*960*1120 | 300 |
