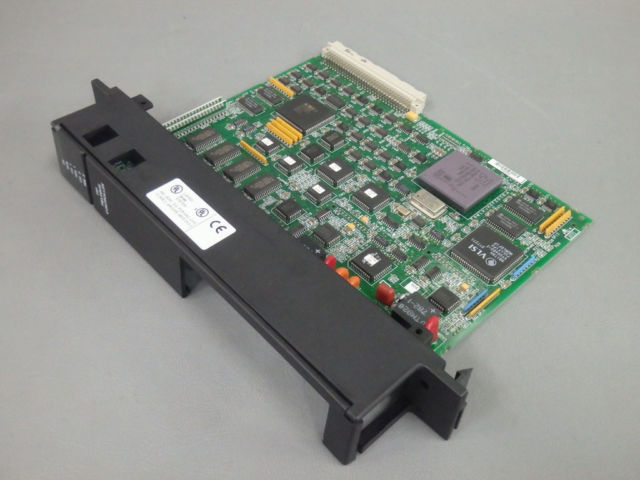

IC655CPU500

IC655CPU500 使用说明：

【厦门光沃自动化设备有限公司】
【联 系 人：陈小姐】
【免费热线：0592-5709825】
【24小时开机：18030229053 】
【工作QQ: 2479261344】

程序设计

    程序设计的关键在于高速绕线机的控制难点分析及解决方案。
    （1）系统难点。绕线机在换向处出现绕线不均匀、堆积；绕线机换向处出现螺旋纹、不平整；无法进行斜排绕线，奇偶数绕线。
    （2）难点分析。换向处绕线不均匀、堆积情况出现主要是由于普通PLC的速度指令处理时间长，换向受程序扫描周期影响，没有同步指令且无法实时刷新，同时伺服刚性参数，动态响应速度也是原因之一。
    换向处出现螺纹主要是因为螺旋绕线方式造成，可采用最后半圈定位绕线解决。
    斜排绕线在爬坡时每圈需要增加一个线宽和线厚，奇偶数绕线是在每绕一层变换绕线匝数奇偶性，两种绕线方式都需要每次绕线后进行计算，由于普通小型PLC运算时间长，导致无法进行高速斜排和奇偶数绕线。
