消 声 室

消 声 室

尚德尔科技提供消声室设计、制造、系统集成服务

● 根据被测物尺寸、测量项目、截止频率提出消声室室内方案。

● 根据被测物声级、环境噪声振动情况、围护结构提出隔声、隔振方案。

● 根据测量工况要求，提出通风消声方案。

● 工厂生产，现场安装、调试。

消声室类型

● 全消声室

● 半消声室

● 简易消声室

吸声材料类型

● SOUNDER 玻璃棉尖劈

● SOUNDER 金属尖劈

● SOUNDER 金属吸声板（用于平板消声室）



隔声板类型

● SOUNDER II56 金属隔声板

● SOUNDER IA45 金属隔声吸声板



隔振器类型

● SOUNDER 弹簧隔振器，SOUNDER 橡胶隔振器，SOUNDER 玻璃棉隔振器



全消声室地网类型

● SOUNDER 钢丝软地网，钢筋硬地网

声学指标

● 截止频率可低至50Hz

● 本底噪声不高于20dBA

● 满足ISO3745 GB 及各行业标准要求



典型应用

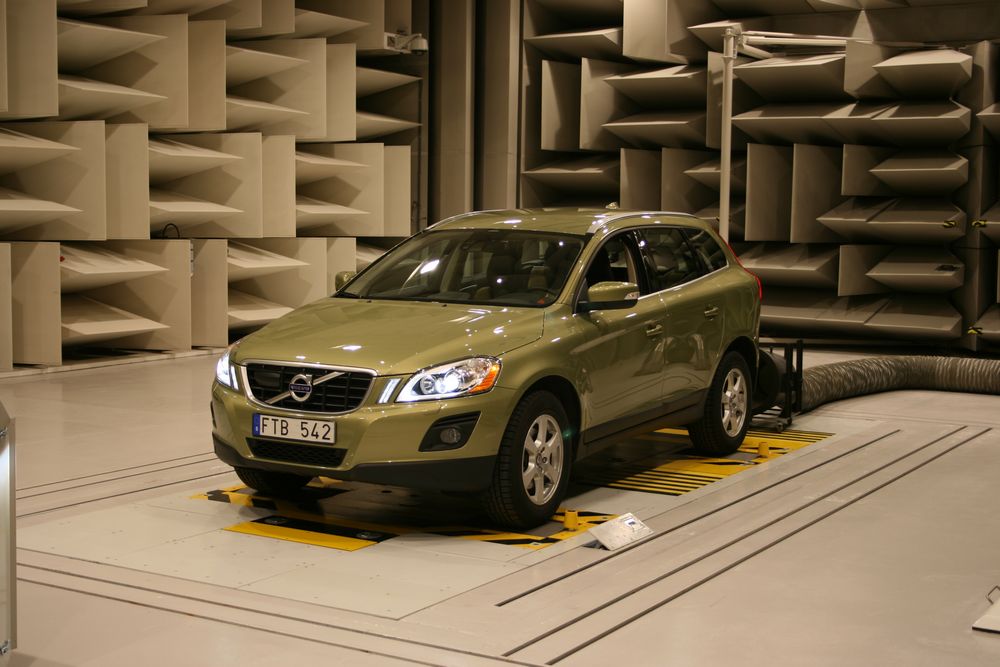

● 汽车、机电或电声等各行业、各产品的声学检测用消声室、半消声室

● 手机或其它通讯产品检测用消声室、消声箱

 Features

●  A form of room-with-a-room is optional for achieving a background noise < 16 dBA

●  The inside and outside rooms can be assembled using CA panels with Rw up to 56 dB

●  Fiber-glass and metal wedges for option with lowest cutoff frequency of 50 Hz

●  Low noise ventilation with SPL <20 dBA

●  Floating floor with rubber or other-type vibration isolators

● All parts of Sound anechoic chambers certified in compliance with ISO 3745

●  Modularized for easy assembly, disassembly and reassembly without impact on acoustic performance

Typical Application

●  Research, Education, Manufacture, Automotive, Electroacoustics, Communication, Government Departments and Others

Typical Customers

●  Ministry of Industry and Information Technology of China

●  Qualcomm

●  Alcatel

●  EW-EURODRIVE

●  Citizen





Sound perforated Metallic Encapsulated Wedges

After researchers’ development, Sound can provide perforated metallic encapsulated wedges (metal wedge). According laboratory testing and built anechoic chamber measurements, Sound metal wedge performs the same acoustic behavior with traditional one.

●  Impact resistance with more than 10 years life cycle

●  Without fiber-glass leaked out and without peculiar smell

●  Cleanable surfaces

●  Bright. The color of surfaces can be painted according to your requirement.

●  Reusable for anechoic chambers’ reassembly. Interchangeable and adjustable

●  High fire resistance
