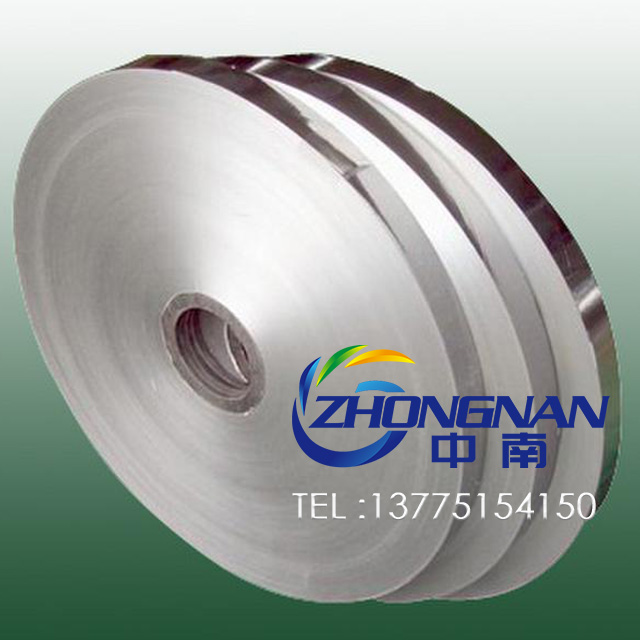

单面铝箔麦拉带
Single-side aluminum foil mylar tape
特性与用途 FEATURES AND APPLICATIONS
单面铝箔麦拉带由铝箔与聚酯薄膜复合而成。作为多导体控制线材的干扰屏蔽,铝箔麦拉带已广泛用于通信电缆、数据电缆、光缆、信号电缆、控制电缆等领域。
Single-side aluminum foil mylar tape is composed of aluminum foil and polyester film. As interference shielding of multi-conductor control wires, aluminum foil mylar tape has been widely used in communication cables, data cables, optical cables, signal cables, control cables and other fields.
技术指标TECHNICAL SPECIFICATION
|
Thickness (mm) |
ComPOSTTTIONs |
Basis weight (g/m2) |
(m2/kg) |
Elongation (%) |
Tensile strength (Mpa) |
|
|
0.020±10% |
AL7+PET12 |
38±10% |
25.8 |
30↑ |
60↑ |
|
|
0.025±10% |
AL7+PET15 |
42±10% |
23.3 |
30↑ |
60↑ |
|
|
0.030±10% |
AL9+PET19 |
52±10% |
19.0 |
30↑ |
60↑ |
|
|
0.035±10% |
AL9+PET23 |
59±10% |
16.8 |
30↑ |
60↑ |
|
|
0.040±10% |
AL12+PET25 |
70±10% |
14.2 |
30↑ |
60↑ |
|
|
0.050±10% |
AL15+PET30 |
85±10% |
11.7 |
30↑ |
60↑ |
|
|
0.050±10% |
AL20+PET25 |
92±10% |
10.9 |
30↑ |
60↑ |
|
|
0.060±10% |
AL25+PET30 |
112±10% |
8.9 |
30↑ |
60↑ |
|
|
0.040±10% |
AL25+PET12 |
87±10% |
11.5 |
10↑ |
60↑ |
|
|
0.055±10% |
AL40+PET12 |
127±10% |
7.8 |
10↑ |
60↑ |
|
|
0.070±10% |
AL45+PET23 |
156±10% |
6.4 |
10↑ |
60↑ |
|
|
0.070±10% |
AL50+PET15 |
159±10% |
6.3 |
10↑ |
60↑ |
|
|
注：宽度从2mm起按客户要求生产 NOTE：widths are available from 2mm and can be customized according to customer is requirement
|
||||||

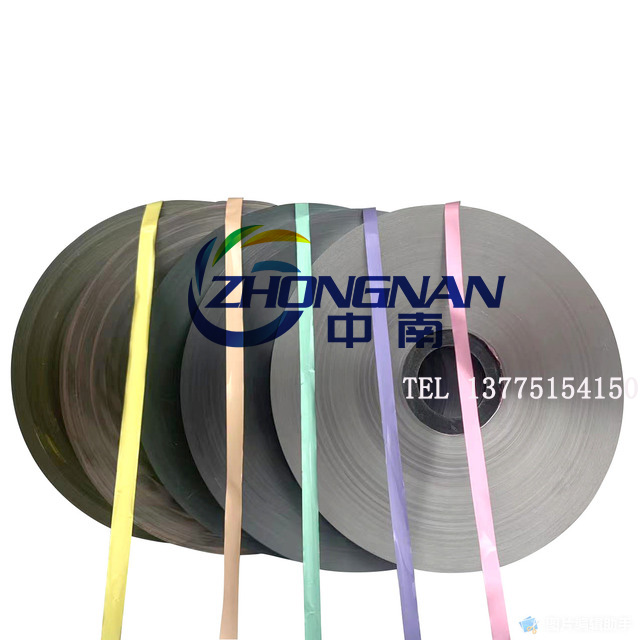

顔色：自然色(银色)，蓝色，红色，铜色，金色，粉色，绿色等
Colors: natural color (silver), blue, red, copper, gold, pink, green and so on.
