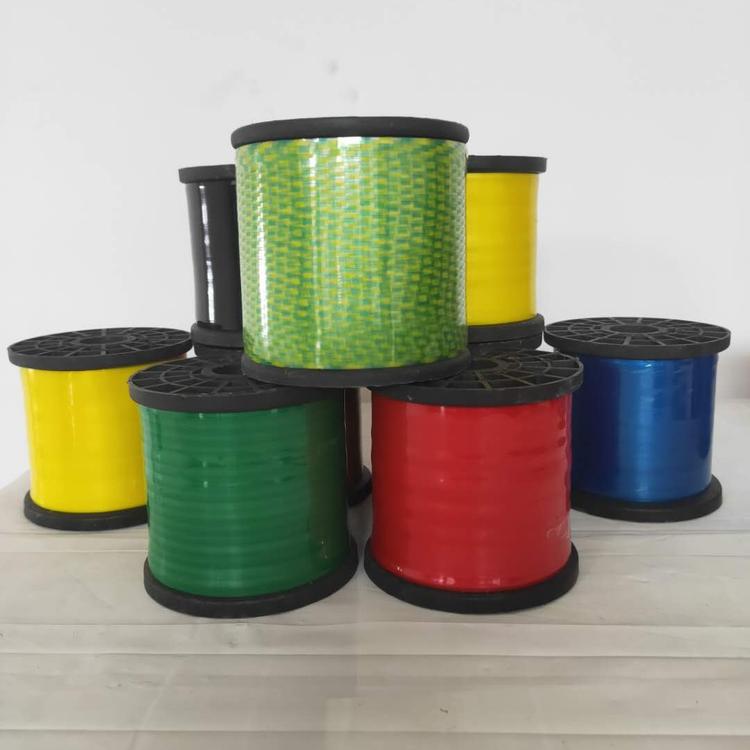

电缆分色带Cable Color Distingulshing Ribbons
本产品分为高温分色带(PET材料)及低温分色带（PE材质）两种，前者做电力电缆、交联电缆等分色用，后者做通讯电缆、光缆电缆分色用。取代绝缘或护套中的色母粒，节约大量成本。可承受瞬间耐温230度，在挤护套时直接随着螺杆挤出，通过硫化管，并且颜色不褪色。
These ribbons are divided into two categories,high temperature color distinguishing ribbons(PET material) and low temperature color distinguishing ribbons(PE material).The former is used for cloor distinguishing in power cable and silane cross-linked polyethylene insulated cable,and the latter for color distinguishing in telecommunication cable and high volage cross-linked polyethylene insulated cable.we provide high temperature color distinguishing ribbons with plastic bobbin core and low. Replace masterbatch in insulation or sheath, save a lot of cost. Can withstand instantaneous temperature of 230 degrees, in the extrusion sheath directly with the screw extrusion, through the vulcanized pipe, and the color does not fade.
高温分色带
HIGH TEMPERATURE COLOR DISTINGUISHING RIBBON
|
宽度With (mm) |
厚度 Thickness (mm) |
耐温 Temperature resistant() |
拉伸强度 MPA |
理论长度 Theoreticallength |
热收缩率 (150℃,30min) |
常用颜色 Colors |
|
2.0±0.5 |
0.03±0.01 |
220-250 |
≥150 |
7000±5% |
≤3.5 |
红黄蓝绿黑 Red,yellow,blue,green,black |
|
3.0±0.5 |
0.03±0.01 |
220-250 |
5000±5% |
|||
|
4.5±0.5 |
0.03±0.01 |
220-250 |
3500±5% |
|||
|
7.0±0.5 |
0.03±0.01 |
220-250 |
2500±5% |
低温分色带
HIGH TEMPERATURE COLOR DISTINGUISHING RIBBON
|
宽度With (mm) |
厚度 Thickness (mm) |
耐温 Temperature resistant() |
拉伸强度 MPA |
理论长度 Theoreticallength |
热收缩率 (150℃,30min) |
常用颜色 Colors |
|
2.0±0.5 |
0.03±0.01 |
220-250 |
≥150 |
7000±5% |
≤3.5 |
红黄蓝绿黑 Red,yellow,blue,green,black |
|
3.0±0.5 |
0.03±0.01 |
220-250 |
5000±5% |
|||
|
4.5±0.5 |
0.03±0.01 |
220-250 |
3500±5% |
|||
|
7.0±0.5 |
0.03±0.01 |
220-250 |
2500±5% |
|
軸内径(mm) |
軸外径(mm) |
轴高度(mm) |
毎軸￡5( kg) |
轴材质 |
|
25 |
120 |
118 |
约1kg |
塑料 |
