品牌：RETZ瑞茨/我们一直致力于流体控制和测控领域的持续创新，始于2005……

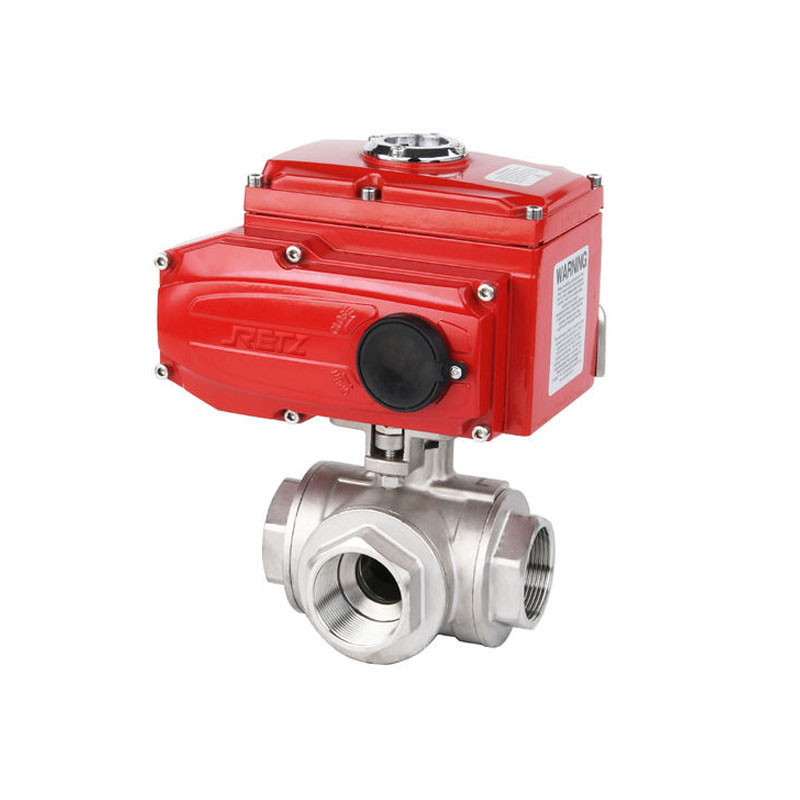

进口电动内螺纹三通球阀有两座和四座密封结构，阀芯孔道有L型和T型两种结构形式，采用控制阀芯旋转角度，改变阀芯孔道与管道口的连接状态，可实现对三条支管不同的组合控制

retz The imported electric internal thread three-way ball valve has two and four sealing structures, and the valve core port has two types of structure: L-shaped and T-shaped. By controlling the rotation angle of the valve core and changing the connection state between the valve core port and the pipeline port, different combinations of three branch pipes can be controlled

功能介绍 Function introduction

进口电动内螺纹三通球阀配置角行程电动执行机构，以AC220V、AC380V或DC24V电源电压作动力，接受工业自动化仪表控制系统输入的（4-20mA、或1-5VDC）电流信号或电压信号，即可控制运转retz The imported electric internal thread three-way ball valve is equipped with an angular stroke electric actuator, which is powered by AC220V, AC380V or DC24V power supply voltage and receives (4-20mA, or 1-5VDC) current signal or voltage signal input from the industrial automation instrument control system to control the operation

L型流道的三通4面阀座球阀，采用2面阀座，受力平衡，保证闭止通道的可靠密封。主要用于流路的换向 Three-way four-side valve seat ball valve with L-shaped flow passage adopts two-side valve seat, with balanced stress, to ensure reliable sealing of the closing channel. Mainly used for commutation of flow path

T型流道的三通4面阀座，由于采用4面阀座，亚力平衡，保证闭止通道的可靠密封。主要用于分流、混 流、换向以及三通道的完全开放 The three-way four-face valve seat of the T-shaped flow passage is balanced by Yali due to the four-face valve seat, which ensures the reliable sealing of the closing channel. It is mainly used for shunt, mixed flow, commutation and full opening of three channels

设计特色 Design features

防火、防静电设计 Fireproof and anti-static design

阀杆防爆出装置 Explosion-proof valve rod outlet device

阀球上设计有压力平衡孔 The valve ball is designed with a pressure balance hole

铸造高平台结构 Cast high platform structure

安装便捷、易维修 Easy installation and maintenance

双层阀杆填料与对压碟型弹片装置 Double-layer valve stem packing and counter-pressure disc spring device

进口电动内螺纹三通球阀主要技术参数及性能 Main technical parameters and performance

公称通径DN(mm)  10    15    20    25    32    40    50

公称压力(MPa)    PN1.6、2.5、4.0、6.4 MPa

阀体形式   三段式分体式阀体

连接形式   螺纹式、焊接式

阀芯形式   "O"型球形阀芯

动作范围   0～90°

泄露量Q    按GB/T4213-92，小于额定KV0.01% (软密封：零泄漏)

基本误差   ±1%

回差  ±1%

死区  ≤1%(可调)

可调范围   250：1

配置执行机构     可配HQ、HR等系列角行程电动执行机构

控制方式   开关到位灯(开关两位控制)、智能调节(4～20mA模拟量信号控制)

执行器技术参数 Technical parameters of actuator

电源电压   AC220/380V，50/60Hz

输出力矩   50N?M～2000N?M

动作范围   0～90° 0～360°

动作时间   15秒/30秒/60秒

保护装置   过热保护

环境温度   -30°～60°

手动操作   同附带手柄操作

限位  电气、机械二重限位

防护等级   相当于IP-65

防爆等级   ExdII BT4；特殊要求可定制ExdII BT6

位置测量   可选装开关或电位计

驱动电机   8W/E

进线接口   PE1/2〞进线线锁
