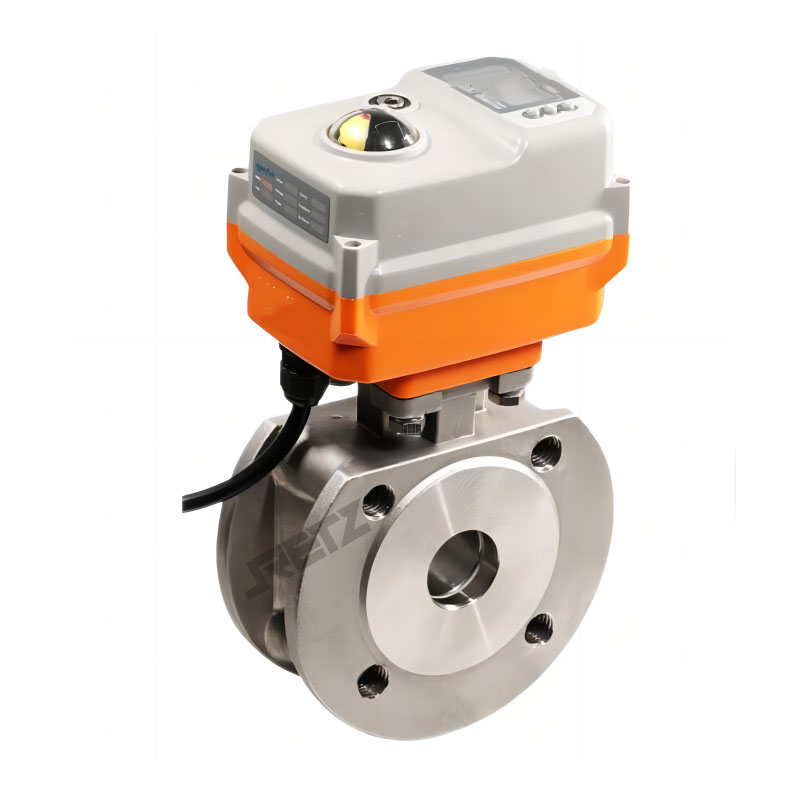

品牌：RETZ瑞茨/我们一直致力于流体控制和测控领域的持续创新，始于2005……(对夹式)进口电动超薄型球阀的阀体比一般法兰球阀结构短，适用于工厂同一管路阀门数量多的场合。球体具有旋转的90度动作，球有圆形通孔通过轴线，当球旋转90度时，在进、出口处应全部呈现球面，从而截断流动，反之既呈现通孔，使介质通过

retz The valve body of imported electric ultra-thin ball valves (wafer type) has a shorter structure than ordinary flange ball valves, and is suitable for situations where there are many valves in the same pipeline in the factory. The sphere has a rotating 90 degree action, with a circular through-hole passing through the axis. When the sphere rotates 90 degrees, it should all present a spherical surface at the inlet and outlet, thereby cutting off flow. Conversely, it should present a through-hole, allowing the medium to pass through

用途慨述 Overview of use

(对夹式)进口电动超薄型球阀球芯通道形状有V形及O形。主要适用于两位切断、调节的场合。球阀与执行机构的连接采用直连方式，电动执行机构内进口电动超薄型球阀2.jpg置伺服系统，无须另配伺服放大器，输入4-20mA信号及220VAC电源即可控制运转。电动对夹球阀具有连线简单，结构紧凑、尺寸小、重量轻、阻力小、动作稳定可靠等优点。本阀与普通球阀相比，具有结构长度短、重量轻、安装方便、节省材料等显著的优点。此外，阀座采用弹性密封结构，密封可靠，启闭轻松。对夹球阀设有耐火结构，万一发生火灾时，仍然能够可靠操作并具有良好的密封性 retz (wafer type) imported electric ultra-thin ball valve has rectangular, V-shaped and O-shaped channel shapes. It is mainly applicable to two-POSTTTION cut-off and adjustment occasions. The connection between the ball valve and the actuator adopts the direct connection mode. The electric actuator has a built-in servo system. It does not need to be equipped with a servo amplifier. The operation can be controlled by inputting 4-20mA signal and 220VAC power supply. Electric wafer ball valve has the advantages of simple connection, compact structure, small size, light weight, small resistance, stable and reliable action, etc. Compared with ordinary ball valve, this valve has the advantages of short structure length, light weight, convenient installation, and material saving. In addition, the valve seat adopts elastic sealing structure, which is reliable and easy to open and close. The double-clip ball valve is equipped with fire-resistant structure, which can still be operated reliably and has good sealing performance in case of fire

设计特色 Design features

全通径式设计、无阻隔 Full bore design, no barrier

防火型式密封结构 Fireproof type seal structure

防喷出阀杆结构 Anti-spray valve stem structure

防低泄漏设计填料及填料函 Low leakage prevention design packing and stuffing box

阀球上设计有压力平衡孔 The valve ball is designed with a pressure balance hole

球体可做成O型和V型两种 The ball can be made into O type and V type

双层阀杆填料与对压碟型弹片装置 Double-layer valve stem packing and counter-pressure disc spring device

技术参数及性能 Technical parameters and performance

执行机构技术参数 阀体参数

电源  AC200 / 380V     公称通径   DN15～150mm

输出力矩   50N?M～2000N?M   公称压力   PN1.6 2.5 MPa(定制)

动作范围   0～90° 0～360° 泄漏量     软密封:零泄漏

动作时间   15秒/30秒/60秒  执行机构   可另配电子式电动执行机构

保护装置   过热保护   流量特性   快开特性

环境温度   -30°～60°      可调范围   DN15-80    DN100-150

                 250:1 350:1

手动操作   同附带手柄操作   阀体形式   整体式锻造、整体式铸造

限位  电气、机械二重限位    连接形式   超薄法兰式、对夹式

防护等级   相当于IP-65     阀芯形式   "O"型球形阀芯

位置测量   可选装开关或电位计    密封填料   V型聚四氟乙烯填料、柔性石墨填料等

驱动电机   8W/E  基本误差   ±1%

防爆等级   ExdII BT4

ExdII BT6  死区  ≤1%

           回差  ≤1%

控制方式   开关量控制

模拟量控制 适用温度   密封面
