SURFACE STRESS METER
- 价 格：
面议 /
套
- 供 应 地：江苏省苏州市
- 发布公司：苏州精创光学仪器有限公司
- 产品型号：ASM-100-3
- 品 牌：PTC-China
- 发布日期：2017/12/8 16:08:51
- 联系人QQ：2270451262
详细说明

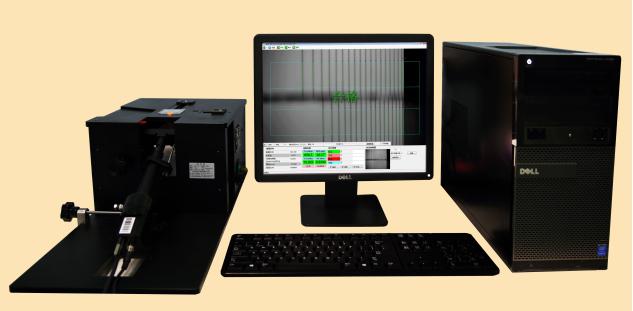

SURFACE STRESS METER FOR TEMPERED GLASS(REF.ASM-100-3)
The Surface Stress Meter is designed for measuring compression stress of tempered glass.It makes the light spread along the surface of glass and then the value of surface stress and depth will be tested through photoelastic principle.Computer equipped will be used to reduce measurement error caused by operator and also be available for data management.In addition,automatic titrator and thickness gauge are in option to achieve efficiency improvement.
FEATURES
■peculiar Measurement Principle-Photoelastic Analysis Refractormeter
■automated testing reducing errors caused by operators
■computer to save data for quality control
■manual testing available when samples are not in good tempered condition
■LED lamp with 10000 hours serving time
■Master Piece to achieve system self-calibration.
■automated determination of qualified or unqualified according to operators’ setting while continuous testing in progress
■data saved and testing times displayed immediately while continuous testing in progress
■single and manual measurement in option
■automated Immersion Drop Function controlled by specific software to reduce Immersion liquid cost
SPECIFICATIONS
Stress Measurement Range(Mpa): 1-1000
Stress Measurement Accuracy(Mpa): ±20
Depth Measurement Range(μm): 0-200
Depth Measurement Accuracy(μm): ±5μm
Measurement Object: chemically and physically tempered glass
Measurement area(mm): ≥12*7
Measurement principle: Photoelastic Analysis by Refractormeter
Source of Light: special LED(with wavelength 590nm±10)
IR of Prism: 1.72
PC: special OS & software(installed)
Software: special software ASM-100-3
Power: AC220V 3A
Air Source(Mpa): 1(clean air)
Weight(Measuring Head)(Kg): about 14
LIST
■Measuring Head: 1 set (ASM-100-3)
■Prism(12*7mm): 1 set (installed on Measuring Head)
■Computer(DELL): 1 set
■Dongle: 1 set (inserted in computer)
■ASM Measurement software: 1 set (installed on computer)
■Immersion Liquid: 20ml
■Master Piece: 1 set
■XP OS
■Manual: 1 set in Chinese Version
■Liquid Titrition: 1 set
