Model 型号 |
US-1010 |
US-1025 |
US-236 |
|
Wire Diameter 线径 |
?0.2～?1.0MM |
?0.3～?2.5MM |
?0.3～?2.5MM |
|
Axis 轴数 |
10~12 |
10~12 |
10~12 |
|
Wire Feed Wheel Sets 送线轮组数 |
1Set |
3Sets |
2Sets |
|
Slide Axis 手臂轴功率 |
0.75KW×8 |
0.75KW×8 |
0.75KW×8 |
|
Quill Rotary Axis 转芯轴功率 |
0.4 KW |
0.75KW |
0.75KW |
|
Wire Feeding Axis 送线轴功率 |
1.0KW |
2.7KW |
2.7KW |
|
Spinner Axis(Optional) 卷曲轴功率（选配） |
0.4KW |
0.4KW |
0.4KW |
|
Free Arm Axis(Optional) 自由手轴功率（选配） |
0.4KW |
0.4KW |
0.4KW |
|
Dimension (LxWxH) 尺寸（长×宽×高） |
1350x600x1550 (mm) |
1500x850x1750 (mm) |
1400x800x1750 (mm) |
|
Weight (kg) 重量（千克） |
500kg |
1100kg |
1100kg |

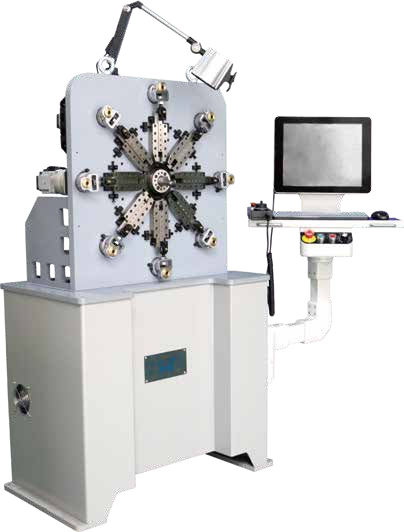

Machine features:
机器特性
1. The machine adopts a camless design, which reduces the technical requirements for spring debugging and greatly reduces the setting time. It is at least 50% faster than using a cam machine to set up.
无凸轮设计?：本机采用无凸轮设计，降低了弹簧调试的技术要求，并大幅缩短了设置时间。与采用凸轮设计的机器相比，设置速度至少提高了50%。
2. The machine uses Sanyo servo motors, high-precision reducers, bearings and gears to effectively guarantee the stable and high-energy operation of the machine and increase the machine's service life.
高精度传动系统?：本机配备三洋伺服电机、高精度减速器、轴承和齿轮，有效确保了机器的稳定高效运行，并延长了机器的使用寿命。
3.The machine is equipped with an industrial professional-grade computer operating system, multi-language display, easy-to-understand operation, rich functions, and can meet complex multi-task requirements.
工业级操作系统?：本机搭载工业专业级计算机操作系统，支持多语言显示，操作简便易懂，功能丰富，能够满足复杂的多任务处理需求。
3. The operating system has intelligent overload protection, automatic detection and alarm of wire feed rack disconnection, and the intelligent and sensitive protection module can provide effective protection for the safety of the operator and the spring machine.
智能安全防护?：操作系统具备智能过载保护功能，能够自动检测并报警送线架断线情况，同时，智能灵敏的保护模块为操作员和弹簧机的安全提供了有效保障。
