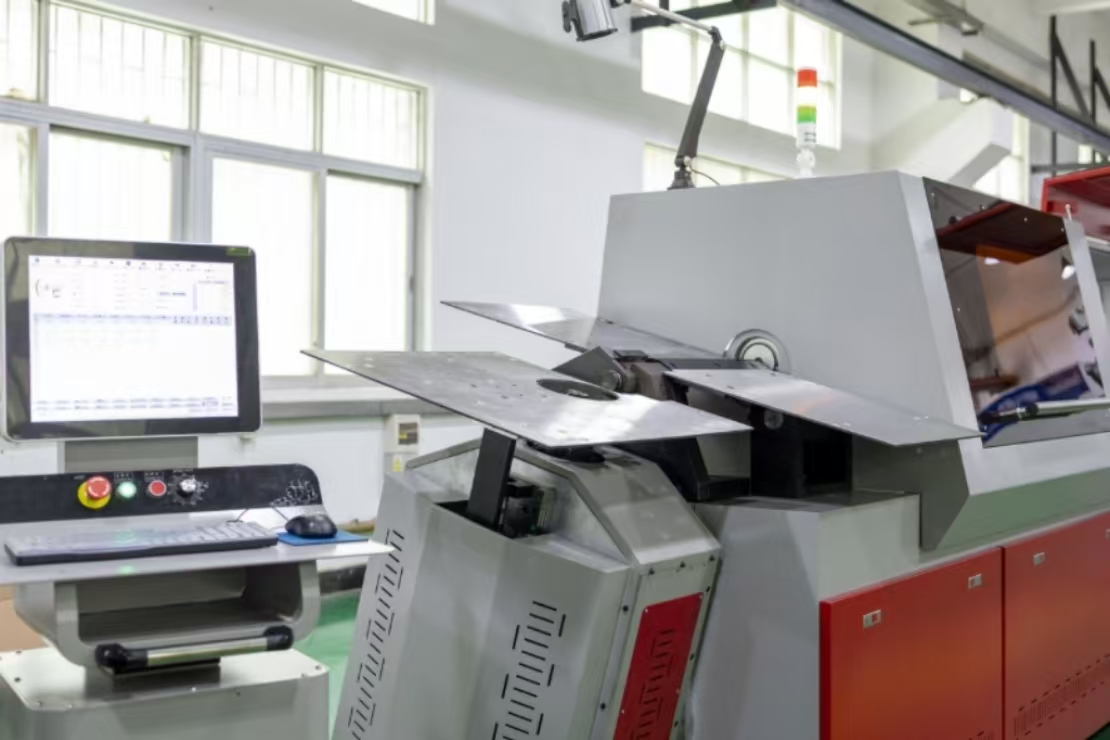

US-8F-750
|
项目 |
参数 |
|
型号 (Model) |
US-8F-750 |
|
线程 (Wire diameter) |
3.0MM ≤ W ≤ 16.0MM 1.0MM ≤ T ≤ 5.0MM |
|
轴数 (Axis) |
7~8 |
|
送线电机 (Wire feeding servo) |
0.4KW*2 |
|
绕线电机 (Winding servo) |
2.0KW*2 |
|
前后移动轴 (Forward and backward movement servo) |
0.4KW |
|
抓料电机 (Grap servo) |
0.4KW |
|
搬运电机 (Handling servo) |
1.0KW |
|
机器尺寸 (LWH) |
955015001800mm3 |
|
机器重量 (Weight) |
2500kg |
1.机器采用胶滚轮送料，对于薄细线谏度更快，也不易折弯，搭配模具气缸送线，适合大线径。
2.双导轨+精密斜齿传动，保证温度精度，同时搬运电机跟绕头进行插补跟随，绕制过程中，托送电机到绕头处。
3.扶料裁剪机构可以把线材准确无误的送入到绕头线槽。在绕制过程中能压紧线材，防止线材跑位。
4.全自动绕线过程，无需人员参与，自动完成线包取货动作，可实现一人多机值守。
5.产品广泛应用于高频、新能源、网络变压器等各行业。
1. The machine uses rubber rollers to feed materials, which is faster for thin and thin wires, and is not easy to bend. It is suitable for large wire diameters with mold cylinders for wire feeding.
2. Double guide rails + precision helical gear transmission to ensure temperature accuracy. At the same time, the motor is interpolated and followed by the winding head. During the winding process, the motor is sent to the winding head.
3. The feeding and cutting mechanism can accurately feed the wire into the winding groove. During the winding process, the wire can be pressed tightly to prevent the wire from moving.
4. The fully automatic winding process does not require personnel to participate, and the action of picking up the wire package is automatically completed, and one person can be on duty for multiple machines.
5. Products are widely used in high frequency, new energy, network transformers and other industries.
