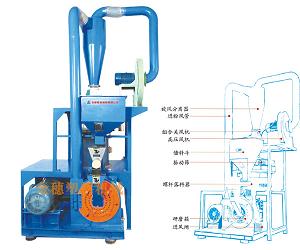

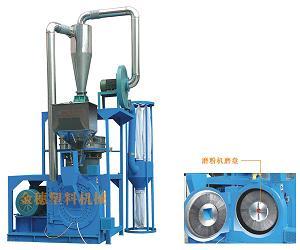

新一代橡胶磨粉机是一种高科技绿色环保产品，且工艺先进，能耗低、产量高，生产过程全封闭，无粉尘溢漏，自动化高等优点。本机是利用动刀及定刀盘高速相对旋转，将弹性体剪切，高压碾磨而达到磨粉的目的，所需粉体目数可用手轮调动来设定刀盘之间的间隙。调动轻松方便。目前，胶粉广泛适用于轮胎、地毯、体育场、交通建设、地铁等橡胶制品领域，是21世纪昌导节能减排，环境保护及资源再生利用的绿色产业。
The new generation of rubber roller mill is a kind of green environmental protection high-tech products and advanced technology, Low energy consumption and high yield production process, fully, no dust leak automation higher Advantage .This machine is decided by the sword and high-speed rotary cutter, elastomers shear, High grinding and reach the purpose of grinding ,the power mesh available to mobilize the handwheel Fixed gap between cutter .Arouse easily ,At present ,are widely used in the rubber tyres ,Carpet ,stadium ,subway construction ,transportation and other rubber products field ,is raised in the 21st century Guide energy conservation and emission reduction, environment protection and utilization of renewable resources of green industry.
技术参数：
|
型号/Type |
JS-350 |
JS-450 |
JS-650 |
|
主机马达Motor |
30HP |
50HP |
75HP |
|
风机马达Blower |
5HP |
7.5HP |
10HP |
|
总功率Total Power |
27KW |
43KW |
63KW |
|
刀盘圆径Cutter Diameter |
350 |
450 |
650 |
|
进料粒径Feed Diameter |
<6mm |
<6mm< |
<6mm |
|
出料细度Discharging pin size |
10~100 mesh > |
10~100 mesh > |
10~100mesh > |
|
工作量Capacity (kg/h) |
50-100 |
100-250 |
200-400 |
|
机械尺寸L×W×H |
1800×1200×3300 |
2200×1760×3800 |
2500×2200×4300 |
