福莱通不锈钢金属软管，光纤保护管，线缆保护套管16mm
福莱通不锈钢金属软管，光纤保护管，线缆保护套管16mm

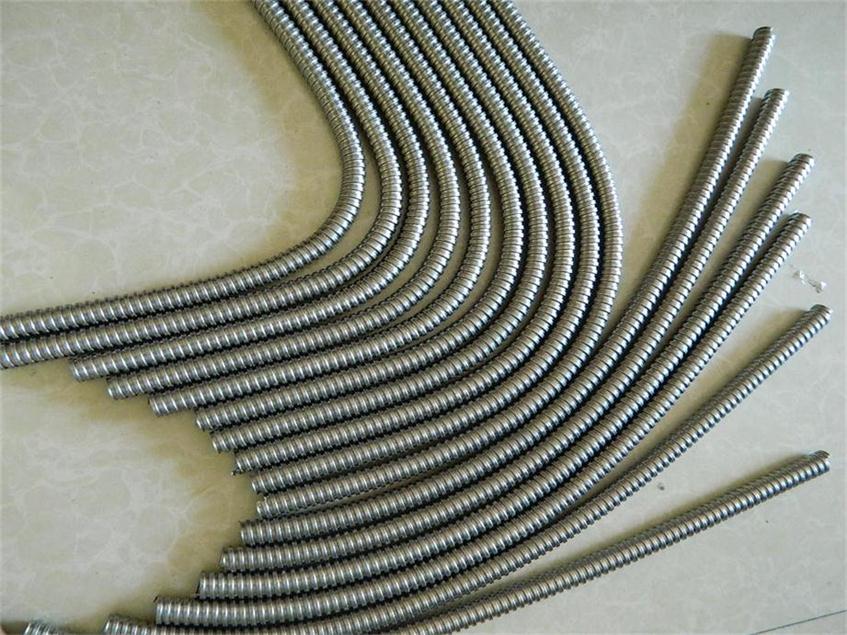

SUS304 flexible metal conduit is manufactured with a galvanized, corrosion resistant, high strength stainless steel strips. The metal strip is helically formed into a continuously interlocked flexible metal conduit that can withstand impact and crushing forces.
304不锈钢金属软管由防腐、高强度的不锈钢钢带制成，钢带采用波浪自锁型结构，具有很强的的机械抗压抗拉保护性能。
福莱通不锈钢金属软管，光纤保护管，线缆保护套管16mm
结构及尺寸：
型号
Part No.
公称直径(mm)
英制 (inches)
内径
I.D.
(mm)
外径
O.D.
(mm)
弯曲半径
Min. Bend
Radius (mm)
包装
Length
(M/coil)
FSS-03
3
3.0
5.0
FSS-04
4
4.0
6.0
FSS-05
5
5.0
7.0
FSS-06
6
6.0
8.0
FSS-07
7
7.0
9.0
FSS-08
8
1/4”
8.0
10.0
35
100
FSS-09
10
5/16”
10.0
12.0
40
50
FSS-10
12
3/8”
12.4
15.3
50
50
FSS-11
16
1/2”
15.4
19.3
65
50
FSS-12
20
3/4”
20.0
23.3
80
50
FSS-13
25
1”
25.0
29.7
100
50
FSS-14
32
1-1/4”
32.0
37.6
130
25
FSS-15
38
1-1/2”
38.0
44.8
150
25
FSS-16
51
2”
51.0
58.2
200
20
FSS-17
64
2-1/2”
62.5
71.1
250
10
FSS-18
75
3”
75.0
84.3
300
10
FSS-19
100
4”
98.0
109.0
400
5
内外径公差±0.5mm
福莱通不锈钢金属软管，光纤保护管，线缆保护套管16mm
APPLICATIONS应用：
SUS304 Flexible Metal Conduit is suitable for the following installations:
不锈钢金属软管适用于以下安装环境:
?Various optical measuring instruments, precision instrument光学精密仪器的线缆保护
?Medical instruments医疗仪器
?Various Machinery and equipment机器设备的线缆保护
?Class 1, Class 2, Class 3 Remote-control, signaling, and power-limited circuit conductors and cables
远程控制、信号线路保护
?Fire alarm system conductors and cables of power-limited or non-power-limited fire alarm circuits
火警系统线路保护
?Voice, data, communications and video cables including CATV and optical fiber cables
语音、数据、通讯、视频、电视、光纤线路保护
?Concealed or exposed installations per NEC® Article 348 and the applicable NEC® provisions
密封防爆环境的线路保护
?Elevators, hoist ways, and escalators per NEC® 620.21 电梯、自动扶梯的线路保护
?As a grounding conductor for lengths up to 6 feet (20A max) as per 2011 NEC® 250.118(5)
?Electric signs and outline lighting per NEC® 600.7, 600.31 (1000 volts or less), and 600.32 (>1000 volts)户外招牌及照明的线路保护
?Hazardous LOCAIION, Class 1, Div. 2, for flexible connectors only per 2011 NEC® 501.10(B)(2) & 501.30(B)危险场所的线路保护
?UL 1, 2, & 3 Hour Through Penetration Fire stop Systems: C-AJ-1462, C-AJ-1463, C-AJ-1464, W-L-1308, andW-L-1309.焊接灭火系统的线路保护。
