ST-EFM系列旋压式喇叭口成型机

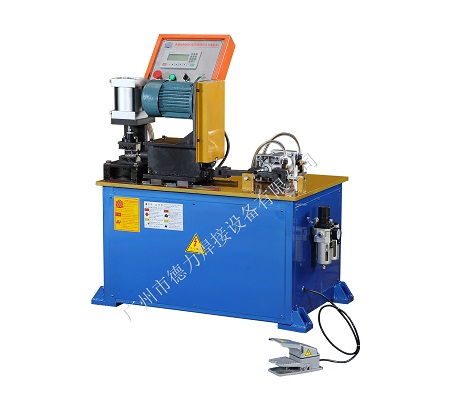

ST-EFM Series Spinning Type Automatic Pipe End Flaring Machine
ST-EFM系列旋压式全自动管端喇叭口成型机
主要功能及应用
喇叭口常用于冷凝器、蒸发器的管道连接以及焊接。
喇叭口制作应大小适宜，过大会开裂，过小接触面不够，要求喇叭口均匀、光滑、无划痕、无毛刺。
管端喇叭口成型机主要利用旋压的方式，将铜管或者铝管的管端加工成喇叭口形状，高速旋压扩口，与机械式锻打扩口相比，开口处光滑，平整，无破裂。
Main Characteristics and Applications
Trumpet Tube End is often used in the pipe connecting and welding of the condenser and evaporator.
As to the flaring shape,the size should be proper,too big size will cause crack, too small size leads to insufficient contact area,it should be uniform, smooth, no scratches, no burr.
Automatic Pipe End Flaring Machine is mainly used for machining the copper or aluminum pipe end into flaring shape by high speed spinning and pressing way,compared with the mechanical forging way,the tube end will be much more smooth, flat, no rupture.
主要技术参数
Main Technical Parameters
铜管与铝管的加工直径
Copper & Al Pipe Diameter
3-35MM
铜管与铝管的加工长度
Copper & Al Pipe Length
≥100MM
固定与驱动方式Driving Mode
气动+电动
Pneumatic or Electrical
加工方式Processing Mode
冷镦+旋压
Cold-forging+Spinning
生产加工效率
Producing and Processing Efficiency
1-5秒/件
1-5Seconds/PC
输入电压Input Voltage
220V / 380V / 440V / 480V, 50/60Hz
设备重量Machine Weight
350KG
