德州定制刮板输送机用聚乙烯刮板
Advantages of UHMW drag conveyor paddles :

 Strong will not break
 Abrasion resistant to outlast other materials
 Flexible but returns to original shape
 Chemical resistant won’t rust or corrode
 Sanitary – USDA/FDA Approved
 Economical
 Heat and cold resistant
 Moisture resistant – prevents clogging
 Self Lubricating
GENERAL INFORMATION
Material
 UHMW, natural – USDA/FDA Approved Food Grade
 UHMW, reprocessed black
 Tivar88, cross linked for added strength andabrasion resistance.
 Stamped or machined
 Operating Temperature Range: -120 f +o 225 f
Installation: When Installing, place flat steel washer on the front side of the flight next to the plastic.

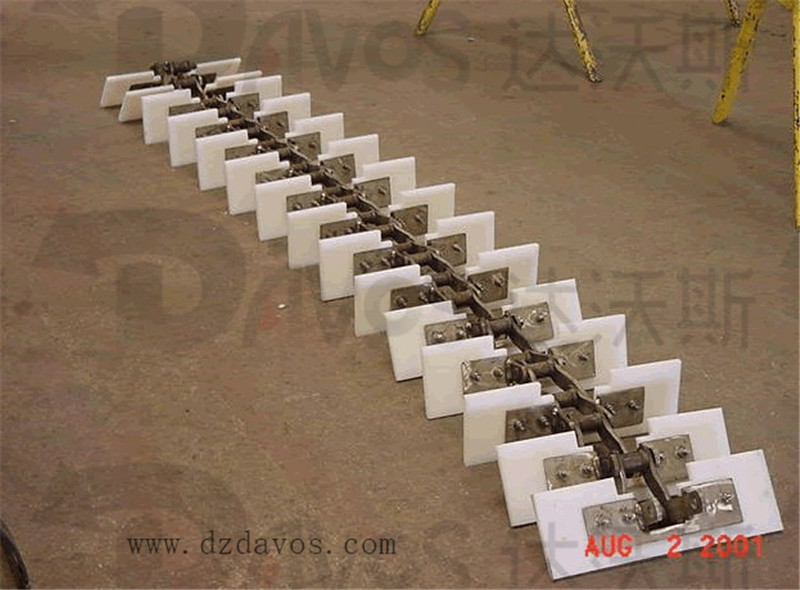

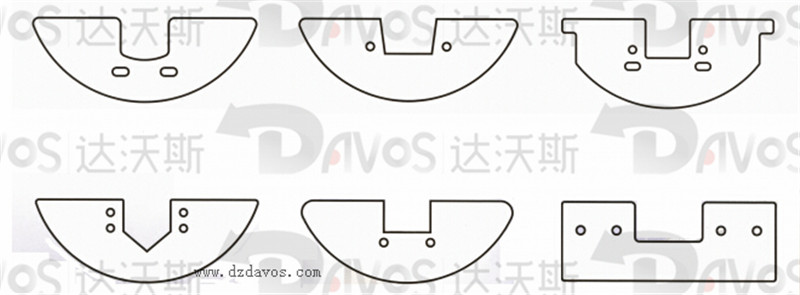

Flat Bottom Drag Flights (Paddles)
TYPICAL DETAILS REQUIRED
1) Customers DeSCRJPTion (Manufacturer, Drawing # etc)
2) Material Type & Thickness (eg. UHMW, HDPE, Nylon,; if food grade required)
3) Size of flight: **Height **Width **Radius
4) Number of Holes ** Diameter POSTTTION of Holes **Width Spacing (centre to centre) **Height
5) Cut-Out Size: ** Width **Height
6) Bevel of Edge: Yes No Other Bevel (Specify)
7) Quantity Required
8) any additional information

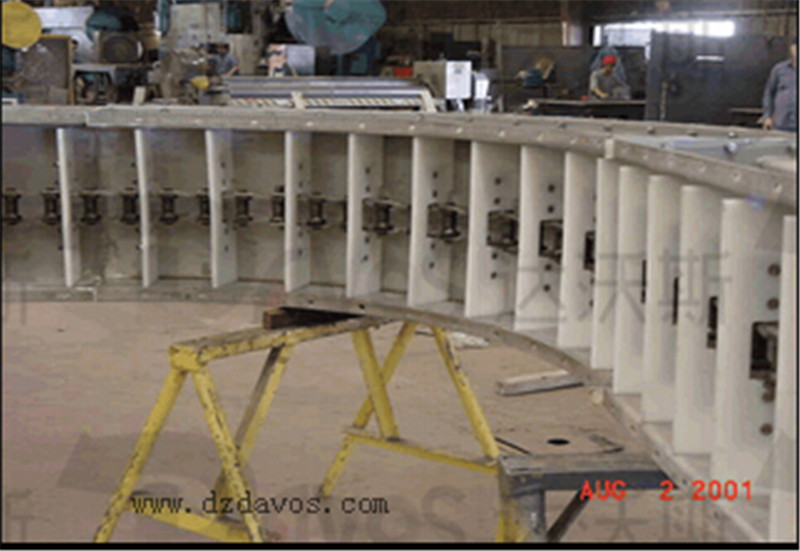

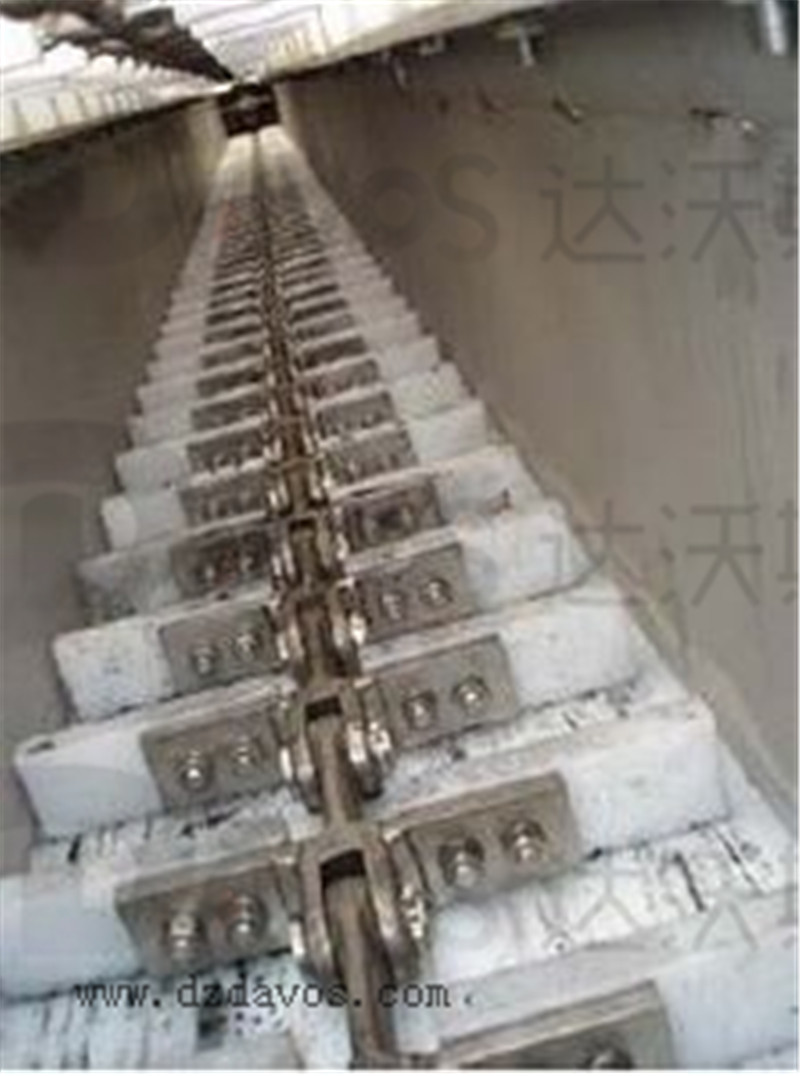

Application:
1 Thermal power coal handling, storage of coal and warehousing chute lining
2 Coal processing Sieve-plate, filter and U-underground coal chute
3 Concrete cement raw and finished product silo silo lining
4 Grain food storage or chute lining
5 Mining sieve plate, chute linings and wear anti-bonding part

6 Chemical engineering corrosion and wear resistance mechanical parts
