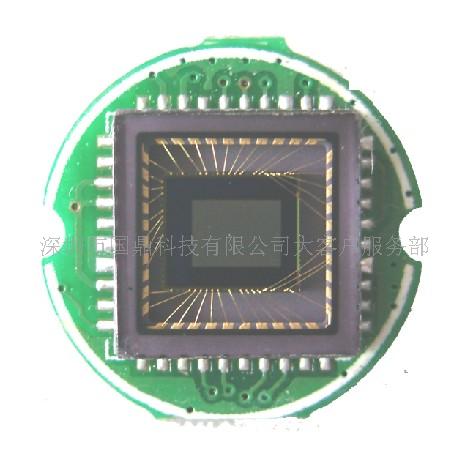

供应直径为16mm的韩国PC1030方案摄像头板机，小巧，应用广
型号:    GD-M7607
成像器件:    1/4  PC1030N  CMOS
制式:    PAL  /  NTSC
有效像素:    648（水平)×488（垂直）/  648（水平）×488（垂直）
感光面积:    3.5964mm  x  2.7084mm
扫描系统:    2:1隔行扫描
同步系统:    内同步
清晰度:    420TV  lines
水平同步频率    15.625KHz  /  15.734KHz
垂直同步频率:    50Hz  /  60Hz
最低照度:    0.5  Lux/F2.0
视频输出:    1.0vp-p,  75Ω
Gamma  系数:    0.45
AGC:    Auto
音噪比:    大于  48dB
白平衡:    Auto
电子快门:    1/50-1/80000（秒）    /      1/60-1/80000（秒）
背光补偿:    自动
电流:    80mA±10%
电压:    DC  3.3V±10%
工作温度:        －20°C~50°C  ,  RH95％  MAX
储存温度:      －30°C~60°C，RH95％  MAX
镜头:    1.8mm  F  =  2.0
镜头角度:      135°
重量：    68克
