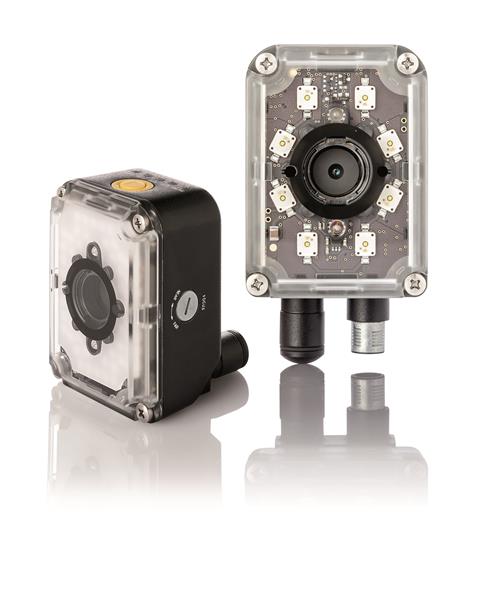

意大利Datalogic P-Series系列智能相机

The P-Series is an ultra-compact cost effective smart camera offering advanced machine vision functionalities in a fully embedded stand-alone device. The P-Series is available with gray-scale or color CMOS image sensors with two different resolutions: VGA and 1.3MP. Lenses and illuminators are fully interchangeable and can be mounted and replaced by the user. Five focal lengths and nine lighting options result in 90 different combinations delivering outstanding installation flexibility while offering superior image acquisition capabilities. The P-Series is powered by the IMPACT LITE software package. With more than 25 inspection tools, IMPACT LITE revolutionizes device programming by making the inspection configuration quick and intuitive.

特点/优势

• Cost effective compact Smart Camera Series
• Right-angle IP67 rated enclosure with rotating connectors
• VGA (640x480) or 1.3 MP (1280x1024)
• Grey-scale or color CMOS image sensor
• Embedded interchangeable lenses and illuminators

• Built-in digital I/Os, Serial and Ethernet interfaces

• 产品订货号

  产品描述

  937700000Camera, IMPACT P10, Grayscale, 640x480, 120 FPS, 1/4" CMOS937700001Camera, IMPACT P15, Grayscale, 1280x1024, 60 FPS, 1/1.8" CMOS937700004Camera, IMPACT P11, Color, 640x480, 120 FPS, 1/4" CMOS 937700005Camera, IMPACT P16, Color, 1280x1024, 60 FPS, 1/1.8" CMOS

• 附件可用于简化安装和优化产品性能：

  产品订货号	产品描述
  95A901780	Lighting, P-Series, LT-050, Wide angle 8 LEDs, red
  95A901790	Lighting, P-Series, LT-055, Wide angle 8 LEDs, white
  95A901800	Lighting, P-Series, LT-053, Wide angle 8 LEDs, blue
  95A901810	Lighting, P-Series, LT-052, Wide angle 8 LEDs, IR
  95A901820	Lighting, P-Series, LT-057, Multi-chain 50 LEDs, red
  95A901830	Lighting, P-Series, LT-059, Multi-chain 50 LEDs, white
  95A901840	Lighting, P-Series, LT-058, Multi-chain 50 LEDs, blue
  95A901870	Lighting, P-Series, LT-051, Wide angle 8 LEDs, red with polarizer
  95A901890	Lighting, P-Series, LT-056, Wide angle 8 LEDs, white with polarizer
  95A901880	P-Series, YAG cut filter
  95A901730	Micro Video Lens, P-Series, 6mm
  95A901740	Micro Video Lens, P-Series, 9mm
  95A901750	Micro Video Lens, P-Series, 12mm
  95A901760	Micro Video Lens, P-Series, 16mm
  95A901770	Micro Video Lens, P-Series, 25mm
  95A901850	Filter, P-Series, IR bandpass filter
  95A901860	Micro Video Lens, P-Series, 25mm with IR bandpass filter
  93A050058	Cable, PWR & I/O, CAB-DS01-S, P-Series to CBX (DB25), 1m
  93A050059	Cable, PWR & I/O, CAB-DS03-S, P-Series to CBX (DB25), 3m
  93A050060	Cable, PWR & I/O, CAB-DS05-S, P-Series to CBX (DB25), 5m
  93A051390	Cable, PWR & I/O, CAB-DS10-S, P-Series to CBX (DB25), 10m
  93A051346	Cable, Ethernet, CAB-ETH-M01 M12-IP67 to RJ45, 1m
  93A051347	Cable, Ethernet, CAB-ETH-M03 M12-IP67 to RJ45, 3m
  93A051348	Cable, Ethernet, CAB-ETH-M05 M12-IP67 to RJ45, 5m
  93A051391	Cable, Ethernet, CAB-ETH-M10 M12-IP67 to RJ45, 10m
  95A906346	I/O Board, A30/T4x, Female DB25
  93A301068	CBX500 CONNECTION BOX MODULAR
  93A301077	CBX800 GATEWAY
  93ACC1810	BM300 PROFIBUS MODULE
  93ACC1811	BM310 PROFIBUS IP65 MODULE
  93ACC1821	BA100 DIN RAIL ADAPTERS
