NBK联轴器膜片型XBS-C XBSS-C系列

XBS-C XBSS-C系列

挠性联轴器 - 单膜片型

Single Disk-type Flexible Coupling

●所有产品均附带内六角止动螺丝。

●适用轴径的推荐尺寸公差为h6及h7。

●可对轴孔和键槽进行追加工。请使用追加工服务。

材质、表面处理



XBS-C XBSS-C

轴套 A7075＊1 SUS303

螺栓 SCM435

四氧化三铁保护膜（黑） SUSXM7

膜片 SUS304 SUS304

轴环 SUS304 SUS304

内六角螺栓 SCM435

四氧化三铁保护膜（黑） SUSXM7

＊1：　也可生产阳极氧化处理产品。请垂询客户中心。



构造

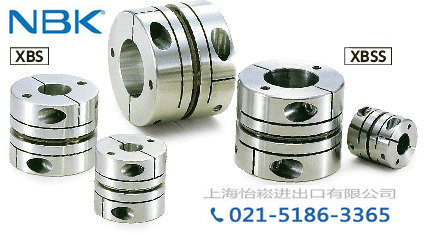

夹紧型XBS-CXBSS-C



XBS-C铝合金轴套

XBSS-C全不锈钢制

XBS/XBSS_构造



特点



适用马达

XBS XBSS

伺服马达 ◎ ◎

步进马达 ◎ ◎

通用马达 ◎ ◎

◎：特优　○：优

特性

XBS XBSS

零背隙 ◎ ◎

高扭矩 ○ ○

高扭转刚性 ◎ ◎

容许误差调整 ○ ○

耐腐蚀性（全不锈钢） - ◎

◎：特优　○：优

膜片型的挠性联轴器。

长度短，体积小巧的联轴器。

不锈钢膜片可容许偏心、偏角及轴向偏差。

尺寸选择性多。外径：φ15～φ104、孔径：φ3～φ50。

XBS袖套采用铝合金中强度最高的A7075材质。

XBSS是使用了不锈钢轴套的全不锈钢型产品。



用途



引动器/表面封装机/精密XY轴滑台/分度台



型号列表



XBS-104C8

XBS-104C8-35-35XBS-104C8-35-38XBS-104C8-35-40XBS-104C8-35-42XBS-104C8-35-45XBS-104C8-35-50XBS-104C8-38-40XBS-104C8-38-42XBS-104C8-38-45XBS-104C8-38-50XBS-104C8-40-40XBS-104C8-40-42XBS-104C8-40-45XBS-104C8-40-50XBS-104C8-42-42XBS-104C8-42-45XBS-104C8-42-50XBS-104C8-45-45XBS-104C8-45-50XBS-104C8-50-50XBS-104C8-38-38

XBS-15C2

XBS-15C2-3-3XBS-15C2-3-4XBS-15C2-3-5XBS-15C2-3-6XBS-15C2-4-4XBS-15C2-4-5XBS-15C2-4-6XBS-15C2-5-5XBS-15C2-5-6XBS-15C2-6-6

XBS-19C2

XBS-19C2-4-4XBS-19C2-4-5XBS-19C2-4-6XBS-19C2-4-8XBS-19C2-5-5XBS-19C2-5-6XBS-19C2-5-8XBS-19C2-6-6XBS-19C2-6-8XBS-19C2-8-8

XBS-25C2

XBS-25C2-5-5XBS-25C2-5-6XBS-25C2-5-8XBS-25C2-5-10XBS-25C2-5-11XBS-25C2-5-12XBS-25C2-6-6XBS-25C2-6-8XBS-25C2-6-10XBS-25C2-6-11XBS-25C2-6-12XBS-25C2-8-8XBS-25C2-8-10XBS-25C2-8-11XBS-25C2-8-12XBS-25C2-10-10XBS-25C2-10-11XBS-25C2-10-12XBS-25C2-11-11XBS-25C2-11-12XBS-25C2-12-12

XBS-27C2

XBS-27C2-6-6XBS-27C2-6-8XBS-27C2-6-10XBS-27C2-6-11XBS-27C2-6-12XBS-27C2-6-14XBS-27C2-8-8XBS-27C2-8-10XBS-27C2-8-11XBS-27C2-8-12XBS-27C2-8-14XBS-27C2-10-10XBS-27C2-10-11XBS-27C2-10-12XBS-27C2-10-14XBS-27C2-11-11XBS-27C2-11-12XBS-27C2-11-14XBS-27C2-12-12XBS-27C2-12-14XBS-27C2-14-14

XBS-34C3

XBS-34C3-6-6XBS-34C3-6-8XBS-34C3-6-10XBS-34C3-6-11XBS-34C3-6-12XBS-34C3-6-14XBS-34C3-6-15XBS-34C3-6-16XBS-34C3-8-8XBS-34C3-8-10XBS-34C3-8-11XBS-34C3-8-12XBS-34C3-8-14XBS-34C3-8-15XBS-34C3-8-16XBS-34C3-10-10XBS-34C3-10-11XBS-34C3-10-12XBS-34C3-10-14XBS-34C3-10-15XBS-34C3-10-16XBS-34C3-11-11XBS-34C3-11-12XBS-34C3-11-14XBS-34C3-11-15XBS-34C3-11-16XBS-34C3-12-12XBS-34C3-12-14XBS-34C3-12-15XBS-34C3-12-16XBS-34C3-14-14XBS-34C3-14-15XBS-34C3-14-16XBS-34C3-15-15XBS-34C3-15-16XBS-34C3-16-16

XBS-39C2

XBS-39C2-8-8XBS-39C2-8-10XBS-39C2-8-11XBS-39C2-8-12XBS-39C2-8-14XBS-39C2-8-15XBS-39C2-8-16XBS-39C2-8-18XBS-39C2-8-19XBS-39C2-8-20XBS-39C2-10-10XBS-39C2-10-11XBS-39C2-10-12XBS-39C2-10-14XBS-39C2-10-15XBS-39C2-10-16XBS-39C2-10-18XBS-39C2-10-19XBS-39C2-10-20XBS-39C2-11-11XBS-39C2-11-12XBS-39C2-11-14XBS-39C2-11-15XBS-39C2-11-16XBS-39C2-11-18XBS-39C2-11-19XBS-39C2-11-20XBS-39C2-12-12XBS-39C2-12-14XBS-39C2-12-15XBS-39C2-12-16XBS-39C2-12-18XBS-39C2-12-19XBS-39C2-12-20XBS-39C2-14-14XBS-39C2-14-15XBS-39C2-14-16XBS-39C2-14-18XBS-39C2-14-19XBS-39C2-14-20XBS-39C2-15-15XBS-39C2-15-16XBS-39C2-15-18XBS-39C2-15-19XBS-39C2-15-20XBS-39C2-16-16XBS-39C2-16-18XBS-39C2-16-19XBS-39C2-16-20XBS-39C2-18-18XBS-39C2-18-19XBS-39C2-18-20XBS-39C2-19-19XBS-39C2-19-20XBS-39C2-20-20

XBS-44C2

XBS-44C2-8-8XBS-44C2-8-10XBS-44C2-8-11XBS-44C2-8-12XBS-44C2-8-14XBS-44C2-8-15XBS-44C2-8-16XBS-44C2-8-18XBS-44C2-8-19XBS-44C2-8-20XBS-44C2-8-22XBS-44C2-10-10XBS-44C2-10-11XBS-44C2-10-12XBS-44C2-10-14XBS-44C2-10-15XBS-44C2-10-16XBS-44C2-10-18XBS-44C2-10-19XBS-44C2-10-20XBS-44C2-10-22XBS-44C2-11-11XBS-44C2-11-12XBS-44C2-11-14XBS-44C2-11-15XBS-44C2-11-16XBS-44C2-11-18XBS-44C2-11-19XBS-44C2-11-20XBS-44C2-11-22XBS-44C2-12-12XBS-44C2-12-14XBS-44C2-12-15XBS-44C2-12-16XBS-44C2-12-18XBS-44C2-12-19XBS-44C2-12-20XBS-44C2-12-22XBS-44C2-14-14XBS-44C2-14-15XBS-44C2-14-16XBS-44C2-14-18XBS-44C2-14-19XBS-44C2-14-20XBS-44C2-14-22XBS-44C2-15-15XBS-44C2-15-16XBS-44C2-15-18XBS-44C2-15-19XBS-44C2-15-20XBS-44C2-15-22XBS-44C2-16-16XBS-44C2-16-18XBS-44C2-16-19XBS-44C2-16-20XBS-44C2-16-22XBS-44C2-18-18XBS-44C2-18-19XBS-44C2-18-20XBS-44C2-18-22XBS-44C2-19-19XBS-44C2-19-20XBS-44C2-19-22XBS-44C2-20-20XBS-44C2-20-22XBS-44C2-22-22

XBS-56C3

XBS-56C3-10-10XBS-56C3-10-11XBS-56C3-10-12XBS-56C3-10-14XBS-56C3-10-15XBS-56C3-10-16XBS-56C3-10-18XBS-56C3-10-19XBS-56C3-10-20XBS-56C3-10-22XBS-56C3-10-24XBS-56C3-10-25XBS-56C3-10-28XBS-56C3-11-11XBS-56C3-11-12XBS-56C3-11-14XBS-56C3-11-15XBS-56C3-11-16XBS-56C3-11-18XBS-56C3-11-19XBS-56C3-11-20XBS-56C3-11-22XBS-56C3-11-24XBS-56C3-11-25XBS-56C3-11-28XBS-56C3-12-12XBS-56C3-12-14XBS-56C3-12-15XBS-56C3-12-16XBS-56C3-12-18XBS-56C3-12-19XBS-56C3-12-20XBS-56C3-12-22XBS-56C3-12-24XBS-56C3-12-25XBS-56C3-12-28XBS-56C3-14-14XBS-56C3-14-15XBS-56C3-14-16XBS-56C3-14-18XBS-56C3-14-19XBS-56C3-14-20XBS-56C3-14-22XBS-56C3-14-24XBS-56C3-14-25XBS-56C3-14-28XBS-56C3-15-15XBS-56C3-15-16XBS-56C3-15-18XBS-56C3-15-19XBS-56C3-15-20XBS-56C3-15-22XBS-56C3-15-24XBS-56C3-15-25XBS-56C3-15-28XBS-56C3-16-16XBS-56C3-16-18XBS-56C3-16-19XBS-56C3-16-20XBS-56C3-16-22XBS-56C3-16-24XBS-56C3-16-25XBS-56C3-16-28XBS-56C3-18-18XBS-56C3-18-19XBS-56C3-18-20XBS-56C3-18-22XBS-56C3-18-24XBS-56C3-18-25XBS-56C3-18-28XBS-56C3-19-19XBS-56C3-19-20XBS-56C3-19-22XBS-56C3-19-24XBS-56C3-19-25XBS-56C3-19-28XBS-56C3-20-20XBS-56C3-20-22XBS-56C3-20-24XBS-56C3-20-25XBS-56C3-20-28XBS-56C3-22-22XBS-56C3-22-24XBS-56C3-22-25XBS-56C3-22-28XBS-56C3-24-24XBS-56C3-24-25XBS-56C3-24-28XBS-56C3-25-25XBS-56C3-25-28XBS-56C3-28-28

XBS-68C5

XBS-68C5-14-14XBS-68C5-14-15XBS-68C5-14-16XBS-68C5-14-18XBS-68C5-14-19XBS-68C5-14-20XBS-68C5-14-22XBS-68C5-14-24XBS-68C5-14-25XBS-68C5-14-28XBS-68C5-14-30XBS-68C5-14-32XBS-68C5-15-15XBS-68C5-15-16XBS-68C5-15-18XBS-68C5-15-19XBS-68C5-15-20XBS-68C5-15-22XBS-68C5-15-24XBS-68C5-15-25XBS-68C5-15-28XBS-68C5-15-30XBS-68C5-15-32XBS-68C5-16-16XBS-68C5-16-18XBS-68C5-16-19XBS-68C5-16-20XBS-68C5-16-22XBS-68C5-16-24XBS-68C5-16-25XBS-68C5-16-28XBS-68C5-16-30XBS-68C5-16-32XBS-68C5-18-18XBS-68C5-18-19XBS-68C5-18-20XBS-68C5-18-22XBS-68C5-18-24XBS-68C5-18-25XBS-68C5-18-28XBS-68C5-18-30XBS-68C5-18-32XBS-68C5-19-19XBS-68C5-19-20XBS-68C5-19-22XBS-68C5-19-24XBS-68C5-19-25XBS-68C5-19-28XBS-68C5-19-30XBS-68C5-19-32XBS-68C5-20-20XBS-68C5-20-22XBS-68C5-20-24XBS-68C5-20-25XBS-68C5-20-28XBS-68C5-20-30XBS-68C5-20-32XBS-68C5-22-22XBS-68C5-22-24XBS-68C5-22-25XBS-68C5-22-28XBS-68C5-22-30XBS-68C5-22-32XBS-68C5-24-24XBS-68C5-24-25XBS-68C5-24-28XBS-68C5-24-30XBS-68C5-24-32XBS-68C5-25-25XBS-68C5-25-28XBS-68C5-25-30XBS-68C5-25-32XBS-68C5-28-28XBS-68C5-28-30XBS-68C5-28-32XBS-68C5-30-30XBS-68C5-30-32XBS-68C5-32-32

XBS-82C5

XBS-82C5-20-20XBS-82C5-20-22XBS-82C5-20-24XBS-82C5-20-25XBS-82C5-20-28XBS-82C5-20-30XBS-82C5-20-32XBS-82C5-20-35XBS-82C5-22-22XBS-82C5-22-24XBS-82C5-22-25XBS-82C5-22-28XBS-82C5-22-30XBS-82C5-22-32XBS-82C5-22-35XBS-82C5-24-24XBS-82C5-24-25XBS-82C5-24-28XBS-82C5-24-30XBS-82C5-24-32XBS-82C5-24-35XBS-82C5-25-25XBS-82C5-25-28XBS-82C5-25-30XBS-82C5-25-32XBS-82C5-25-35XBS-82C5-28-28XBS-82C5-28-30XBS-82C5-28-32XBS-82C5-28-35XBS-82C5-30-30XBS-82C5-30-32XBS-82C5-30-35XBS-82C5-32-32XBS-82C5-35-35XBS-82C5-32-35

XBS-94C7

XBS-94C7-25-25XBS-94C7-25-28XBS-94C7-25-30XBS-94C7-25-32XBS-94C7-25-35XBS-94C7-25-38XBS-94C7-25-40XBS-94C7-25-42XBS-94C7-25-45XBS-94C7-28-28XBS-94C7-28-30XBS-94C7-28-32XBS-94C7-28-35XBS-94C7-28-38XBS-94C7-28-40XBS-94C7-28-42XBS-94C7-28-45XBS-94C7-30-30XBS-94C7-30-32XBS-94C7-30-35XBS-94C7-30-38XBS-94C7-30-40XBS-94C7-30-42XBS-94C7-30-45XBS-94C7-32-32XBS-94C7-32-38XBS-94C7-32-40XBS-94C7-32-42XBS-94C7-32-45XBS-94C7-35-35XBS-94C7-35-38XBS-94C7-35-40XBS-94C7-35-42XBS-94C7-35-45XBS-94C7-38-40XBS-94C7-38-42XBS-94C7-38-45XBS-94C7-40-40XBS-94C7-40-42XBS-94C7-40-45XBS-94C7-42-42XBS-94C7-42-45XBS-94C7-45-45XBS-94C7-32-35XBS-94C7-38-38
