RD288-1MA

温度 ? 记录器 ? 直立式图表记录仪 ? RD200 and RD2800 Series
可编程图表记录仪100 mm和180 mm

2年保修CEOmegaCareRoHS
Simultaneous Digital Displays of Multipoint Data
Universal input The recorders accept total 56 ranges of 10 DC voltage ranges, 35 thermocouple ranges and 11 resistance thermometer ranges, and these ranges can be programmed for each channel.
Universal power voltage 100VAC to 240VAC, 50/60Hz
Clear trend and digital printings Cassette type wire-dotting system 6-color ink ribbon for clear trend and digital printings
Alarm Display/Printings
Chart illumination Convenient to confirm printed data in night or dark places
Software Package “KIDS” Available
Conforms to CE, UL, and CSA Standards

产品描述

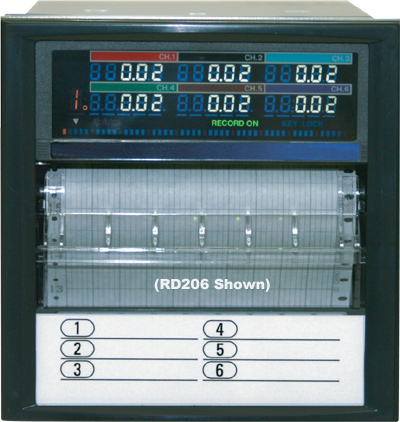

The RD200 and RD2800 Series chart recorders are 100 mm, multipoint, hybrid recorders that can print/display multichannel and alarm data simultaneously. A total of 56 ranges can be programmed for each channel: 35 thermocouple, 11 RTD, and 10 DC voltage. The user can also program up to 4 levels of alarm for each channel; optional alarm outputs are available. The recorders display alarm settings (status and channels), and can print channel alarms and alarm numbers. A data acquisition software package, “KIDS”, lets the user create real-time and historical data/trend displays. The RD200 and 2800 Series chart recorders are manufactured in ISO9001-certified facilities and conform to CE, UL, and CSA safety standards.

Data acquisition software package "KIDS" (RD2800-KIDS)
The "KIDS" is a software package for storing data being measured by RD200 and RD2800 series recorders and for replaying of the stored data.
Main function and features:
- Data processing: Up to 5 sets (max. 100 channels) - Real-time data, real-time trend, historical data, historical trend and daily report
- Communications interfaces: RS-232C, RS-422A or RS-485 - Stored data: Enable to export to Microsoft Excel, Lotus 1-2-3 and other application software
- OS: WINOOWs 95/98, WINOOWs NT4.0

Engineering software package "PASS" (RD2800-PASS)
The "PASS" is a software package, through a communications interface (optional) or a configuration port, for programming parameters of RD200 and RD2800 series recorders by a personal computer.
Main functions and features:
- Input parameters: Ranges, scales, tags, engineering units, alarms, burnout
- Printing parameters: Chart speed, data interval, subtract printing, zone printing, automatic range-shift printing - Operation: Message printing
- Others: Clock setting, temperature units (oC, oF), alarm deadband, communications specification (for programming through a configuration port only)
- OS: WINOOWs95/98, WINOOWsNT4.0

产品编号 产品描述


RD201 100 mm, 1 pen
RD201-MATH 100 mm, 1 pen
RD202 100 mm, 2 pen
RD202-MATH 100 mm, 2 pen
RD203 100 mm, 3 pen
RD203-MATH 100 mm, 3 pen
RD204 100 mm, 4 pen
RD204-MATH 100 mm, 4 pen
RD206-C232 100 mm, 6-dot points with RS232C communications port
RD206-R6 100 mm, 6-dot points recorder with 6-mechanical relay output
RD206 100 mm, 6-dot points
RD2801 180 mm, 1 pen
RD2801-MATH 180 mm, 1 pen
RD2802 180 mm, 2 pen
RD2802-MATH 180 mm, 3 pen
RD2803 180 mm, 3 pen
RD2803-MATH 180 mm, 3 pen
RD2804 180 mm, 4 pen
RD2804-MATH 180 mm, 4 pen
RD2806 180 mm, 6-dot points
RD2812-C232 180 mm, 12-dot points recorder with RS232C communications port
RD2812-R12 180 mm, 12-dot points recorder with 12 mechanical relay output
RD2812 180 mm, 12-dot points
RD2824-C232 180 mm, 24-dot points recorder with RS232C communications port
RD2824-R24 180 mm, 24-dot points recorder with 2echanical relay output
RD2824 180 mm, 24-dot points

Accessories

RD200-RC 6-color ribbon cassette for RD200
RD2800-RC 6-color ribbon cassette for RD2800
180A-CP-0-1000 Chart paper for RD2800 pen (1 pack)
180A-CP-0-1200 Chart paper for RD2800 pen (1 pack)
180A-CP-0-1500 Chart paper for RD2800 pen (1 pack)
180A-CP-0-1600 Chart paper for RD2800 pen (1 pack)
180A-CP-0-200 Chart paper for RD2800 pen (1 pack)
180A-CP-0-2400 Chart paper for RD2800 pen (1 pack)
180A-CP-0-400 Chart paper for RD2800 pen (1 pack)
180A-CP-0-500 Chart paper for RD2800 pen (1 pack)
180A-CP-0-800 Chart paper for RD2800 pen (1 pack)
180A-CP-50-250 Chart paper for RD2800 pen (1 pack)
180A-CP-800-1500 Chart paper for RD2800 pen (1 pack)
180A-CP--100-400 Chart paper for RD2800 pen (1 pack)
180A-CP-0-100 Chart paper for RD2800 pen (1 pack)
RD200-CP-0/100 Chart paper for RD200 pen (1 pack)
RD2800-PASS Engineering Software Package
RD2800-KIDS Data acquisition software
RD200-01 Red pen, 1 channel for RD200
RD200-02 Green pen, 2 channels for RD200
RD200-03 Blue pen, 3 channels for RD200
RD200-04 Brown pen, 4 channels for RD200
RD2800-01 Red pen, 1 channel for RD2800
RD2800-02 Green pen, 2 channels for RD2800
RD2800-03 Blue pen, 3 channels for RD2800
RD2800-04 Brown pen, 4 channels for RD2800
RD200-PLOTTERPEN Plotter pen (3 pen per pack) for RD200/2800

Optional Boards (Field Installable only for RD2800 models)

RD2800-C422 RS422A communication interface
RD2800-C485 RS485 communication interface
RD2800-C232 RS232C communication interface
RD2800-EI Ethernet interface
RD2800-R6 6-point mechanical relay “C” SPST
RD2800-R12 12-point mechanical relay “C” SPST
RD2800-R24 24-point mechanical relay “C” SPST
