RD3048

数据采集??RD1000_RD2000_RD3000

Touch Screen Paperless Recorders with Expandable I/O
触摸屏无纸记录仪具有可扩展性
Color TFT Touch Screen Display: 4.3", 5.6" and 12.1"
彩色TFT触摸屏显示器：4.3“，5.6”和12.1”
Expandable Inputs and Outputs via Plug and Play I/O Cards: RD1000/2000 Series–4 Slots; RD3000 Series–16 Slots
可扩展的输入和输出，即插即用的I/O卡：各种2000系列–4槽16槽系列；rd3000–
Analog Inputs: RD1000 Series–Up to 6, RD2000 Series–Up to 24, RD3000 Series–Up to 48
模拟量输入：各种系列–达6，rd2000系列–达24，rd3000系列–多达48
User Friendly with Bar Graph, Numerical, Vertical or Horizontal Trend Display
用户友好的条形图，数值，垂直或水平趋势显示
Ethernet Interface Standard with Optional RS232/422/485 Communications
以太网接口标准和可选的RS232／422／485通信
Built-In Web Server for Remote Data Monitoring
建立在网络服务器的远程数据监测
Stores Data on 256 MB Internal Flash Memory
存储数据在256兆字节的内部闪存
WINOOWs® Graphical Software Standard and Optional Software for Real Time Monitoring
WINOOWs®图形软件标准和可选的软件实时监控

产品描述

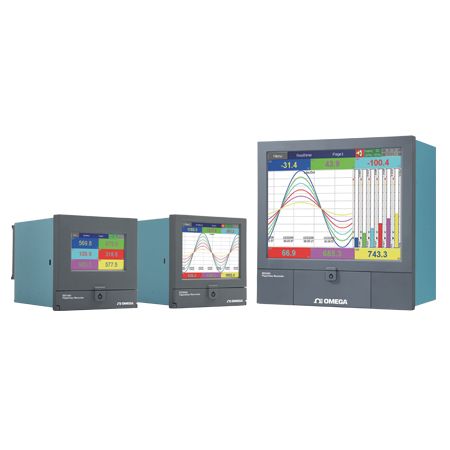

The RD1000/2000/3000 Series paperless recorders offer real time display of data in a variety of formats on a high resolution TFT touch screen display. The user friendly unit with plug and play cards can easily be set to monitor, record, and evaluate any application. The user can access data on the screen, as well as from a remote site via the standard Ethernet, Web Server or optional RS232/422/485 serial interface. The historical data may be stored in a flash ROM, compact flash card, or collected in a remote host PC for evaluation and print out. The unit’s compact size saves space and minimizes depth required behind the panel.

Expandable Input and Output Cards
Each recorder is equipped with rear expansion slots (RD1000/RD2000 Series has 4 slots, RD3000 Series has 16 slots) which work flexibly with the following plug and play I/O cards:
Analog Input Cards (RD1000-3AI amp; RD1000-6AI):These two cards are used for 3 or 6-channel analog inputs. Each input is isolated from each other to avoid noise and to ensure stable measurement.
Relay Output Card (RD1000-6R):
Each card includes 6 alarm relays. Contacts are rated 5 A/240 Vac
Digital Input Card (RD1000-6DI):
Each card includes 6 channels. Logic Low: -5V minimum, 0.8V maximum, Logic High: 3.5V minimum, 24V maximum
Combination Relay Output and Digital Input Card (RD1000-3R-3DI):Each card includes 3 digital Inputs and 3 relay outputs. For digital inputs, Logic Low: -5V minimum, 0.8V maximum, Logic High: -3.5V minimum, 24V maximum. For relay outputs, the contacts are rated 5 A/240 Vac.
Analog Output Card (RD1000- 6AO):Each card includes 6 channels. They are used for 4 to 20 mA, 0 to 20 mA current output, 0 to 5 V, 1 to 5 V, 0 to 10 Vdc voltage output.
Communication
The standard communication interface is Ethernet with protocol IEEE 802.3 – 10/100 Base T. RS232/422/485 serial communications is optional.

SPECIFICATIONS
General
Display:LCD, 65K color
Resolution:RD1000: 480 x 272; RD2000: 640 x 480; RD3000: 1024 x 768
Backlight:LED
MTBF Backlight @ 25°C:RD1000, RD2000: 30,000 hrs; RD3000: 60,000 hrs
CPU:ARM Cortex-A8, 1 GHz
Internal Flash Memory:256 MB
SD Card Slot:Standard
USB Host:2 ports (one front, one back)
Start/Stop Key:Start/stop recording and turn off display only (for quick re-start), does not turn off power to the unit
Web Server:The recorder trend and digital data can be viewed in any place in the world with the recorder connected to Internet with a fixed IP address
Multilingual Programming:19 languages including English, Japanese, Chinese (simplified, traditional), French, German, Spanish, Swedish, Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Brazil Portuguese and Czech
PC Software:Standard software supplied for historical data viewing and configuration; optional Data Acquisition Studio software for real-time monitoring; supports WINOOWs XP/Vista/7/8 (32-bit and 64-bit)
Real Time Clock Accuracy vs. Temperature Inside of Housing:18 sec typical error per month (10 to 40°C); 52 sec typical error per month at 0°C or 50°C; 107 sec typical error per month at -10°C or 60°C
Power:90 to 250 Vac, 47 to 63 Hz, 52 VA, 26 W max; 11 to 36 Vdc, 26 VA, 26 W max (optional)

Environmental and Physical
Operating Temperature:0 to 50°C (32 to 122°F)
Storage Temperature:-30 to 70°C (-22 to 158°F)
Humidity:20 to 90% RH (noncondensing), maximum relative humidity of 90% RH is for ambient temperature up to 38°C (100°F) decreasing linearly to 50% RH at 50°C (122°F)
Operation POSTTTION:no inclined restriction
Dimensions (Panel Mount Style):RD1000/RD2000 Series: 144 H x 144 W x 189 mm D (5.67 x 5.67 x 7.44");
RD3000 Series: 288 H x 288 W x 189 mm D (11.34 x 11.34 x 7.44")
Standard Panel Cutout:RD1000/RD2000 Series: 137 x 137 mm (5.39 x 5.39");
RD3000 Series: 281 x 281 mm (11.06 x 11.06")
Mounting Depth Behind Panel:171 mm (6.73")
Enclosure:IP65 front panel for indoor use; IP20 housing and terminals

RD3048

RD1003记录仪 美国omega
RD1006记录仪 美国omega
RD2003记录仪 美国omega
RD2006记录仪 美国omega
RD2012记录仪 美国omega
RD2018记录仪 美国omega
RD2024记录仪 美国omega
RD3006记录仪 美国omega
RD3012记录仪 美国omega
RD3018记录仪 美国omega
RD3024记录仪 美国omega
RD3030记录仪 美国omega
RD3036记录仪 美国omega
RD3042记录仪 美国omega
RD3048记录仪 美国omega
