RD106B 美国Omega

RD106B 美国Omega详细介绍

RD106B

测试与测量 ? 记录仪和数据记录仪 ? 混合记录仪 ? RD100A/RD1800 (Discontinued See RD100B Series)
Multi Channel Universal Input Chart Recorders, 100 and 180mm DISCONTINUED PRODUCT

2年保修OmegaCareRoHS
Digital and Bargraph Display
1, 2, 3, 4 Continuous Pens or 6 Point Dot Printing Models (RD1800 Also 12, 18, 24 Dot Printing)
Universal Inputs Thermocouple, RTD, Voltage
Programmable Input Types, Full Scale Ranges, Alarms, Chart Speed
Powerful but Easy to Use
Interactive Displays for Easy Setup
Large, Bright Dot-Matrix Display for Data and Units
Compact - Only 220 mm (8.6") Deep
Splash Resistant Door
Fast Dot Printing (6 Channels in as Little as 10 Seconds)
Removable Terminal Blocks for Easy Wiring
Optional Alarms with Remote Control
Optional RS-422A Communications
Optional CE Approval With English, French, German Display Prompts
Portable Units (RD100A Only)
Pen Offset Compensation Standard

产品描述
(Discontinued, see RD100B Series)

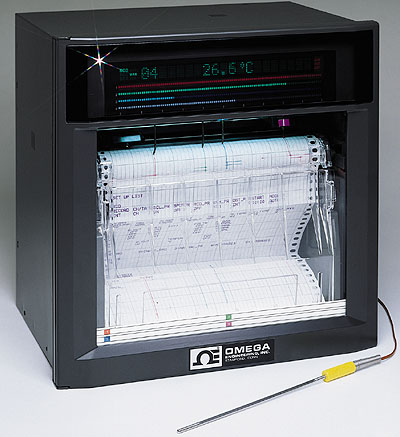

The RD100A (100 mm, 4") and RD1800 (180 mm, 7") Series programmable chart recorders provide continuous monitoring of your essential processes. These recorders are designed for ease of use, featuring universal inputs of thermocouple, RTD or voltage inputs.

The front panel of each unit features an analog bar graph and digital display for easy monitoring.

The simplified operation of these powerful recorders allows for universal inputs that are fully programmable from the front panel. Universal inputs allow you to inputs freely on-site without setting DIP switches. Simple front panel keypad operations program each input individually for thermocouple, RTD, dc voltage (mV or V) or contact input for operation recording.

The recorders are designed for ease of use. In addition to the clear, easy-to-read analog chart, each recorder prints out on the chart paper the date and time, channel number, scale marking, tag number, proper engineering units, chart speed, alarm value and complete program list at programmed intervals or on demand.

The RD100A/RD1800 recorders utilize a non-contact ultrasonic pen POSTTTION transducer for higher accuracy when compared to standard pen mechanisms. The wear-free, brushless dc servo-motor completely eliminates motor brushes, lead wire and connectors, and is directly mounted to the printed circuit board. These two features contribute to the long, trouble-free life of these recorders.

产品编号 产品描述


RD1804-S4 4-pen recorder with RS-422A communications
RD1812-AR12 12-pen recorder with 12 alarm outputs, remote control (RD1806, RD1812, RD1818, RD1824 only)
RD100A-01 Disposable red felt pen channel 1
RD100A-02 Disposable green felt pen channel 2
RD100A-03 Disposable blue felt pen channel 3
RD100A-04 Disposable violet felt pen channel 4
RD100A-11 Plotter pen
RD100-RC 6-color print ribbon purple, red, green, blue, brown, black (RD106 only)
RD110-RC 6-color print ribbon for RD1806, RD1812, RD1818 and RD1824
RD110-ZFP Z-fold chart paper (pkg. of 6) 180 mm x 20 m (7" x 65') RD1800 series
