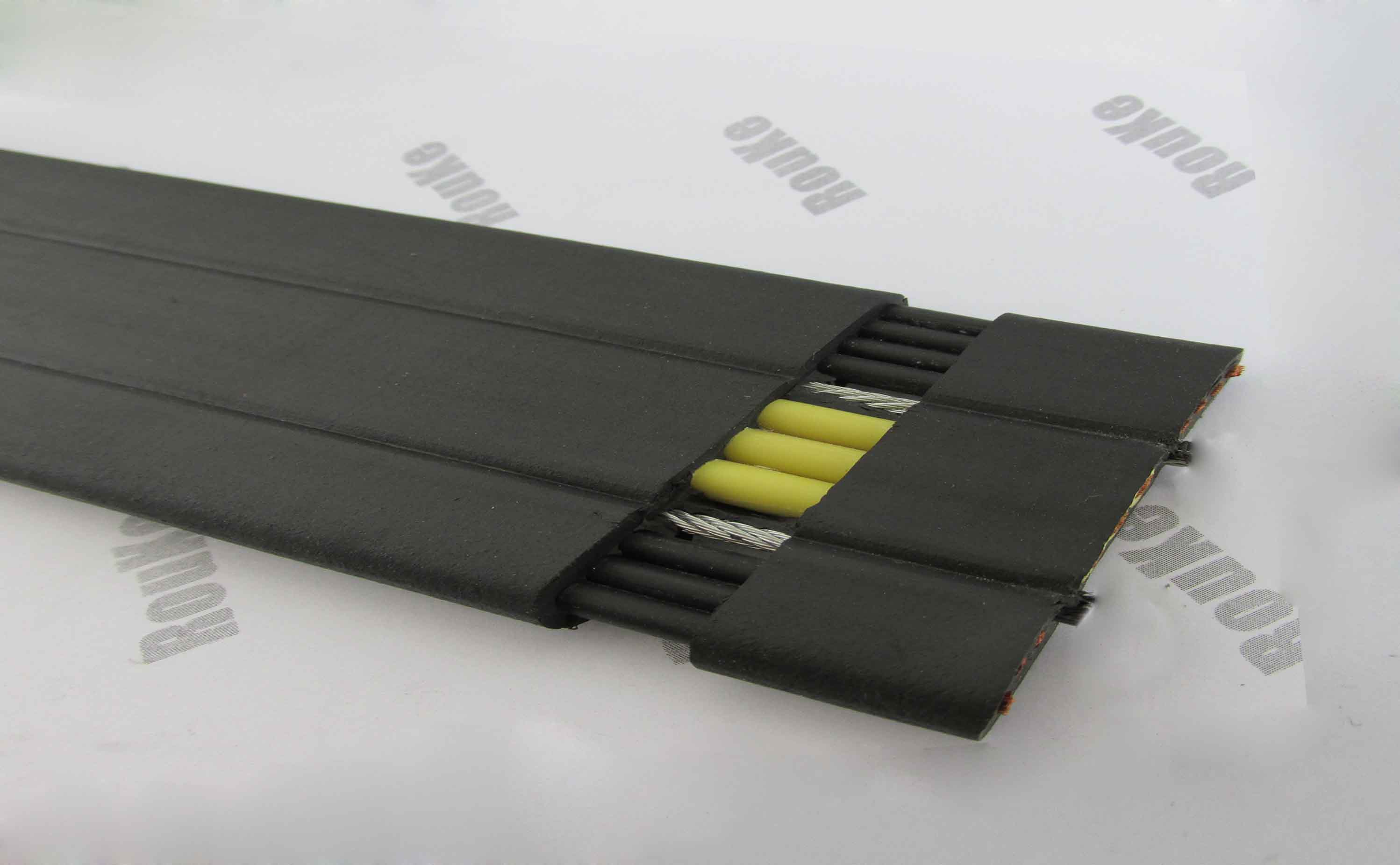

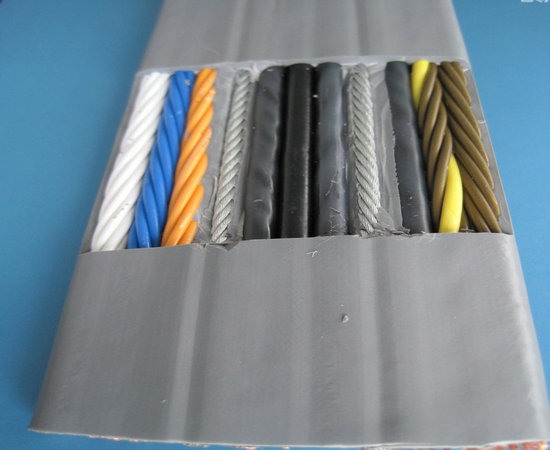

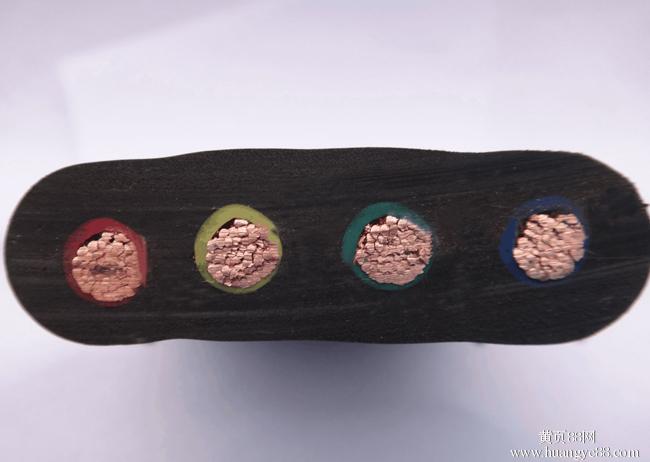

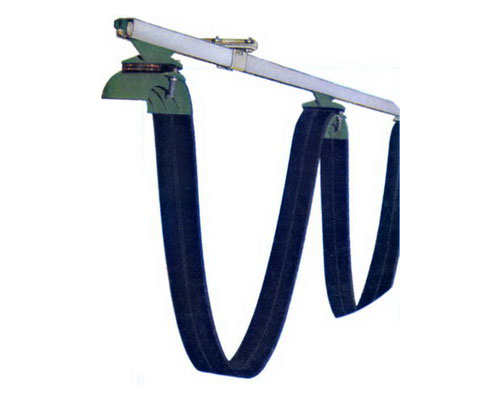

江苏春晨电缆有限公司生产YFFB扁电缆配电箱安装，YFFB扁电缆用于起重机卷筒，YFFB扁电缆用于行车，、配电箱（盘）的固定：
The fixing of the distribution box (disk):
在混凝土墙或砖墙上固定明装配电箱（盘）时，采用暗配管及暗分线盒和明配管两种方式。如有分线盒，先将盒内杂物清理干净，然后将导线理顺，分清支路和相序，按支路绑扎成束。待箱（盘）找准位置后，将导线端头引至箱内或盘上，逐个剥削导线端头，再逐个压接在器具上，同时将PE保护地线压在明显的地方，并将箱（盘）调整平直后进行固定。在电具、仪表较多的盘面板安装完毕后，应先用仪表校对有无差错，调整无误后试送电，将将卡片框内的卡片填写好部位、编上号。

There are two ways for fixing the distribution box on the concrete wall or brick wall. If there is a distribution box, first clean up the litter in the box, then straighten out the wire, distinguish the branch and phase sequence, and bind the bundles into bundles. After the LOCAIION of the box (disk), the end of the wire is introduced to the box or on the disk, and the end of the wire is exploited one by one, then it is pressed on the appliance one by one. At the same time, the PE protection ground line is pressed in the obvious place, and the box (disc) is adjusted to be fixed. After the installation of the plate panel with more electric and instrument, the error of the instrument should be proofed by the instrument, and the post test will be adjusted. The cards in the card frame will be filled in and the number is made up.
在木结构或轻钢龙骨护板墙上进行固定配电箱（盘）时，应采用加固措施。如配管在护板墙内暗敷设，并有暗接线盒时，要求盒口应与墙面平齐，在木制护板墙处应做防火处理，可涂防火漆或加防火材料衬里进行防护。除以上要求外，有关固定方法同上所述。
Reinforcement measures should be adopted when fixing distribution box on wooden wall or light steel joist wall. If the pipe is laid in the retaining wall with dark wiring, and there are dark junction boxes, the box and mouth should be leveled with the wall. Fire protection should be done at the wall of the wooden wall, and the protective coating can be applied with the fireproof paint or the lining of the fireproof material. In addition to the above requirements, the related fixed methods are mentioned above.
暗装配电箱的固定：

The fixed power distribution box is fixed.
根据预留孔洞尺寸先将箱体找好标高及水平尺寸，并将箱体固定好，然后用水泥砂浆填实周边并抹平齐，待水泥砂浆凝固后再安装盘面和贴脸。如箱底与外墙平齐时，应在外墙固定金属网后再做墙面抹灰。不得在箱底板上抹灰。安装盘面要求平整，周边间隙均匀对称，贴脸（门）平正，不歪斜，螺丝垂直受力均匀。
According to the size of the reserved holes, the box body is first looked for the elevation and the horizontal size, and the box is fixed. Then the cement mortar is used to fill the surrounding and smooth, and then the cement mortar will be set up and put on the face after the cement mortar is solidified. Such as the bottom and wall flush, should be done on the exterior wall plastering fixed metal net. No plastering on the bottom of the box. The installation of the disc surface is smooth, the clearances of the peripheral joints are symmetrical, and the face is straight, and the vertical force of the screws is uniform.
绝缘摇测：
Insulation shaking test:
配电箱（盘）全部电器安装完毕后，用500V兆欧表对线路进行绝缘摇测。摇测项目包括相线与相线之间，相线与中性线之间，相线与保护地线之间，中性线与保护地线之间。两人进行摇测，同时做好记录，做为技术资料存档。
After the installation of all electrical appliances, the 500V Mega meter is used to measure the insulation of the line. The project includes the phase line and the phase line, between the phase line and the neutral line, between the phase line and the protective earth wire, between the neutral line and the protective earth wire. The two people will do the shake test, and record well as the technical data.
