户内高压限流熔断器
- 价 格:
28.00 /
只
- 供 应 地:上海上海市
- 发布公司:上海民熔电气有限公司
- 产品型号:RN1-6/0.5 3.15 6.3 10 16 20 25
- 品 牌:上海民熔电气
- 发布日期:2015/3/24 14:08:16
- 联系人QQ:2273563982

详细说明
|
RN1型户内高压限流熔断器,用于电力线路的过载及短路保护。所谓限流就是熔断器在短路电流达到峰值之前就将其切断的功能。
□The product is in overload or short-circuit protection for elctric transformer. The current limiting means that the fuse will cut off the circuit before the shortcircuit current reaches the peak value.
◆熔断特性
当通过熔断器的电流为其额定电流的1.3倍时,1小时不熔断;当通过熔断器的电流为其额定电流的2倍时,1小时内熔断;熔断器的熔断特性曲线如图1,供选择熔断器时参考。
Current which passes the fuse when being 1.3 times of its specified electric current, Do not fusing for an hour; When the current through the fuse is 2 times of its specined electric current, fusing in an hour; Refer to its fusing feature curve in chart 1 when select the fuse.
|
|
|
◆技术数据Technique data
|
|
|
3
|
6
|
10
|
35
|
|
额定电流 A
|
20
|
100
|
200
|
300
|
400
|
20
|
75
|
100
|
200
|
300
|
20
|
50
|
75
|
100
|
200
|
7.5
|
10
|
20
|
30
|
40
|
|
最大开断电流KA (有效值)
Max breaking curent KV effective vakue
|
40
|
20
|
12
|
3.5
|
|
最小开断电流(以额定电流倍数表示)
The mininum breaking current Express
with specified electric current multipe
|
不规定
nuprovide
|
1.3
|
不规定
nuprovide
|
1.3
|
不规定
nuprovide
|
1.3
|
不规定
nuprovide
|
1.3
|
|
三相最大断流容量(MVA)
|
200
|
|
重量 Weight
|
8
|
8.9
|
10.8
|
15.7
|
15.7
|
8.5
|
9.6
|
13.6
|
13.6
|
17
|
10
|
11.5
|
14.5
|
21
|
21
|
10
|
20
|
27
|
27
|
27
|
|
|

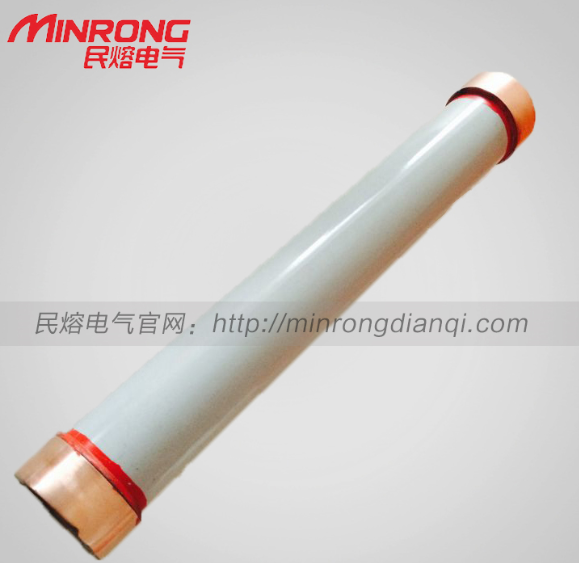

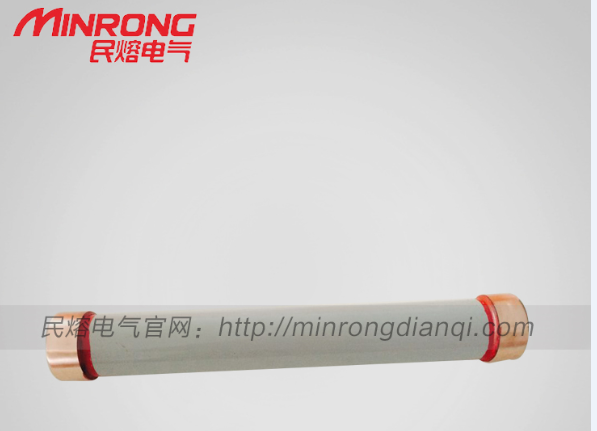

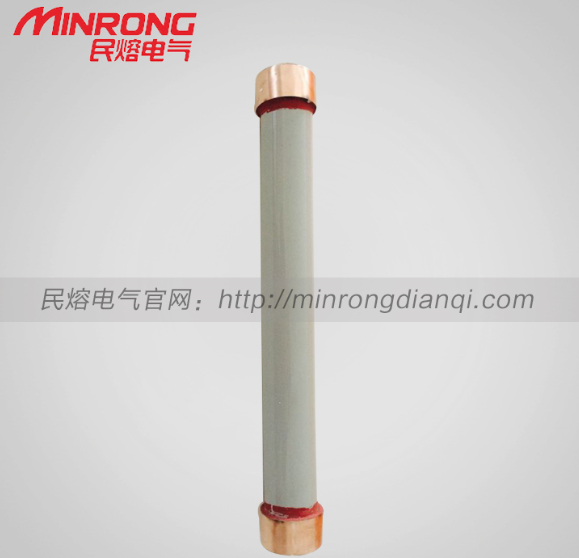

◆熔断管结构Structure of fuse link
|
|
熔断管是熔断器的主要部件,它是由熔丝装在瓷管中,并在瓷管中充填石英砂,两端密封而成。额定电流在7.5A以下及额定电压 为35V的熔管,其熔丝是绕在特制的瓷芯上,如图2.a;额定电流在7.5A以上的熔体管,其熔丝是悬挂在瓷管中如图2.b。
The fuse pipe is the main part of fuse,it is made by installing the fuse wire in the porcelain pipe,filling the quartz sand in the porcelain pipe and sealing to-ends of pipe.For the fuse pipe with rated current below 7.5Aand 35V rated voltage,its fuse wire is rolled on the special por-
celain core,referening to chart 2.a.for the fuse pipe with rated current above 7.5A,its fuse wire is hang in the
|
民熔电气是国内高压输配电业务专业制造商之一。以上海为研发制造基地,以中国电器城为主要销售中心。现已形成集研发、生产、销售、服务为一体的多元化企业。公司产品覆盖高压电器、输配电设备、建筑工业及电气自动化等产业。主要生产熔断器、高避雷器、绝缘子、穿墙套管、隔离开关、负荷开关、高压真空断路器、互感器、电磁锁、带电显示装置等高压电器产品。
公司拥有雄厚的技术力量、精湛的生产工艺、先进的检测设备、完善的科学管理体系,企业已通过了ISO9001:2000国际质量体系认证。
民熔电气始终贯彻“诚信经营,品质取胜;注重发展,不断创新。”的经营理念,全面发展 ,追求卓越。在新产品开发、产品品质提高、服务质量完善、人力资源投入方面、不遗余力,锐意进取!
公司始终将自身的利益与社会的需要紧密结合起来,努力实现 “持久的为电力系统提供安全、节能、可控、高效的产品。”的企业使命。在日趋激烈的市场竞争中,民熔品牌知名度、美誉度及市场占有率,在中国高压电力系统领域日趋领先地位,多年来得到广大用户一致的好评!
销售产品:熔断器、高压高避雷器、绝缘子、穿墙套管、隔离开关、负荷开关、高压真空断路器、高压真空断路器、互感器、电磁锁、带电显示装置、高压电器产品
