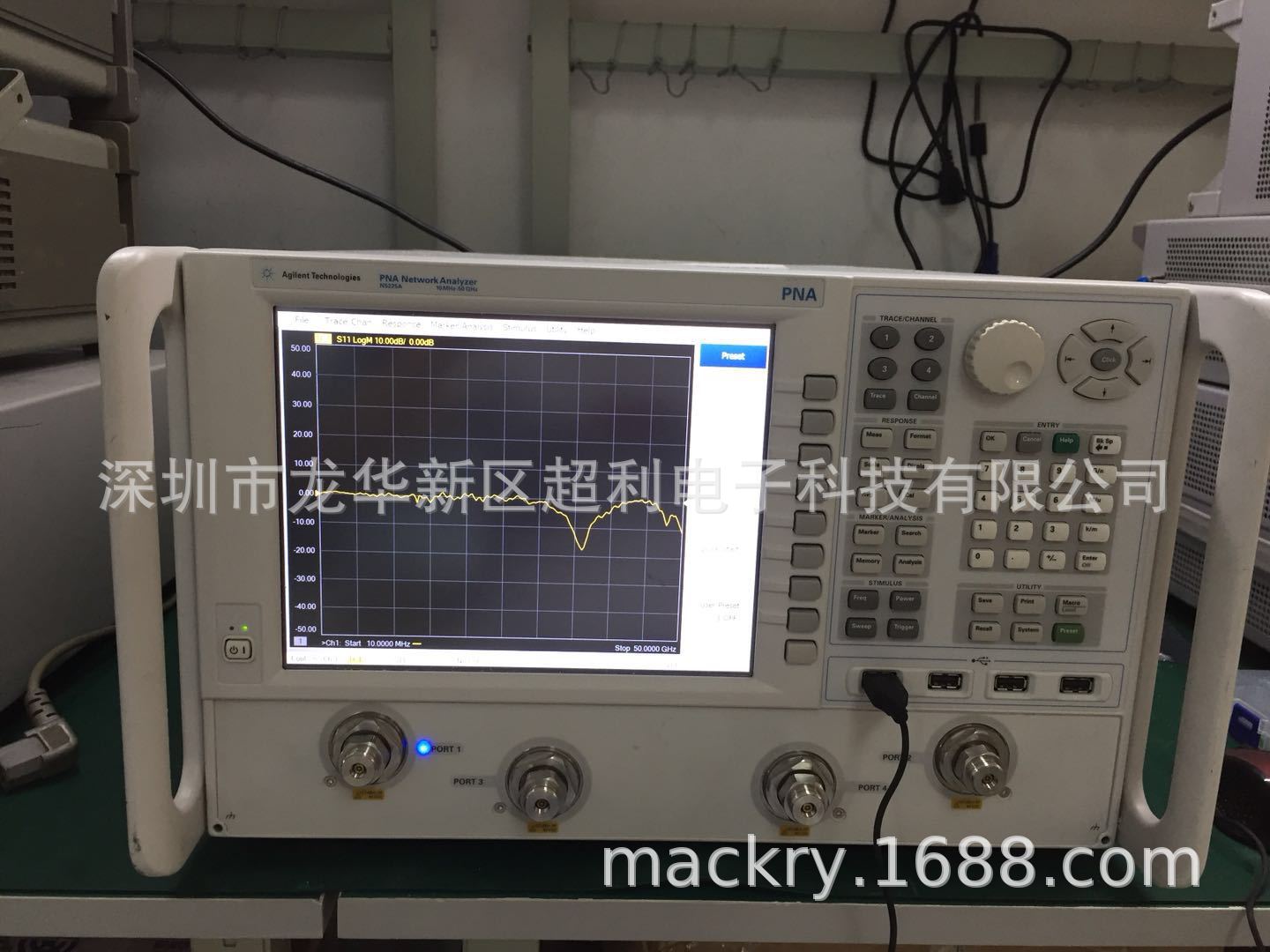

keysight N5247A矢量网络分析仪 keysight N5247A矢量网络分析仪

N5247A 网络分析仪  技术指标

zui大频率     67 GHz
动态范围     129 dB
输出功率     13 dBm
轨迹噪声     0.002 dBrms
内置端口数量     2 或 4 端口
谐波             -60 dBc
本底噪声     -118 dBm
扫描速度zui高可达 201 个点     9.7 ms
网络分析仪系列     PNA-X 非常先进和灵活的
应用:
平衡测量 S参数 增益压缩 X参数 IMD 增益压缩 平衡测量 本底噪声 脉冲射频 本底噪声 S参数 X参数 脉

冲射频
元器件:
天线 混频器/变频器 放大器
台式           是

Number of ports
N5247A-200    2 ports, single source
N5247A-400    4 ports, dual source
Hardware options
N5247A-219    Add extended power range and bias-tees to 2 port analyzer
N5247A-224    Add internal second source, combiner and mechanical switches to 2-port

analyzer
N5247A-419    Add extended power range and bias-tees to 4 port analyzer
N5247A-423    Add internal combiner and mechanical switches to 4-port analyzer
N5247A-020    Add IF inputs
N5247A-021    Add pulse modulator to internal first source
N5247A-022    Add pulse modulator to internal second source
N5247A-025    Add four internal pulse generators
N5247A-029    Fully-Corrected Noise-Figure Measurements to 50 GHz
Additional capability
N5247A-010    Time-domain measurements
N5247A-080    Frequency offset measurements
N5247A-082    Scalar calibrated conversion measurements
N5247A-083    Vector and scalar calibrated converter measurements
N5247A-084    Embedded LO measurements
N5247A-086    Gain compression application
N5247A-087    Intermodulation distortion measurements
N5247A-118    Fast CW mode
N5247A-460    Integrated true-mode stimulus application
N5247A-551    N-port calibrated measurements
N5247A-028    Noise figure measurements using standard receivers
N5247A-008    Pulsed-RF measurements
N5247A-088    Source phase control
N5247A-520    Arbitrary load impedance X-parameters
N5247A-518    Nonlinear pulse envelope domain
N5247A-514    Nonlinear X-parameters
N5247A-510    Nonlinear component characterization, full frequency range
N5247A-301    Application for use with standard CalPods
N5247A-302    Application for use with temperature-characterized CalPods
N5247A-089    Differential and I/Q devices application
N5247A-511    Nonlinear component characterization, restricted to 50 GHz
N5247A-007    Automatic Fixture Removal
N5247A-015    Dynamic Uncertainty for S-Parameter Measurements
N5247A-090    Spectrum Analyzer
Calibration Software for Self-Maintainers
N5247A-897    Built-in performance test software for inclusive calibration, perpetual

license
N5247A-898    Built-in performance test software for standards compliant calibration,

perpetual license
Calibration documentation
N5247A-UK6    Commercial calibration certificate with test data
N5247A-A6J    ANSI Z540-1-1994 Calibration
N5247A-1A7    Calibration + Uncertainties + Guardbanding
Accessories
N5247A-1CP    Rack mount kit for installation with handles
N5247A-1CM    Rack mount kit for installation without handles
N1966A     脉冲/IO 适配器
N6171A     MATLAB 软件
