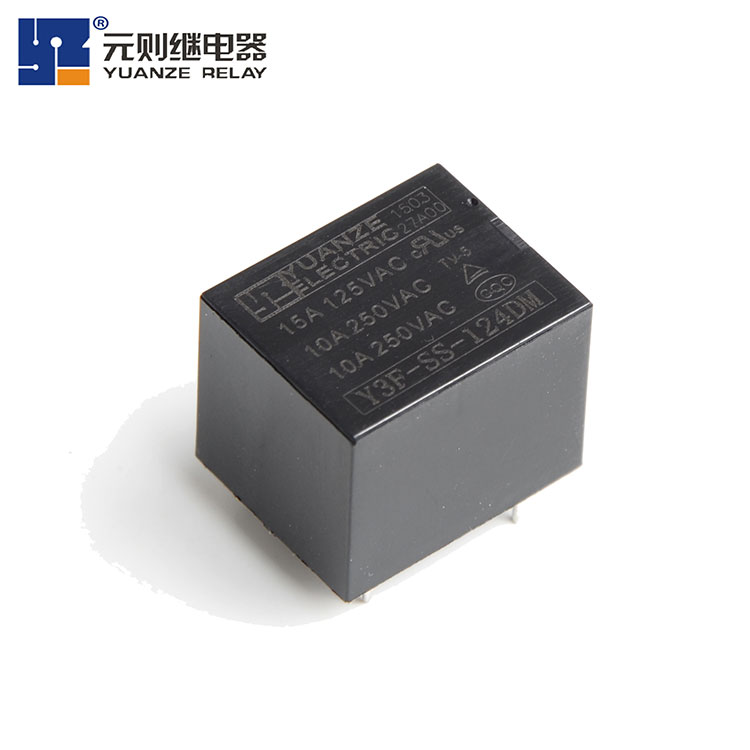

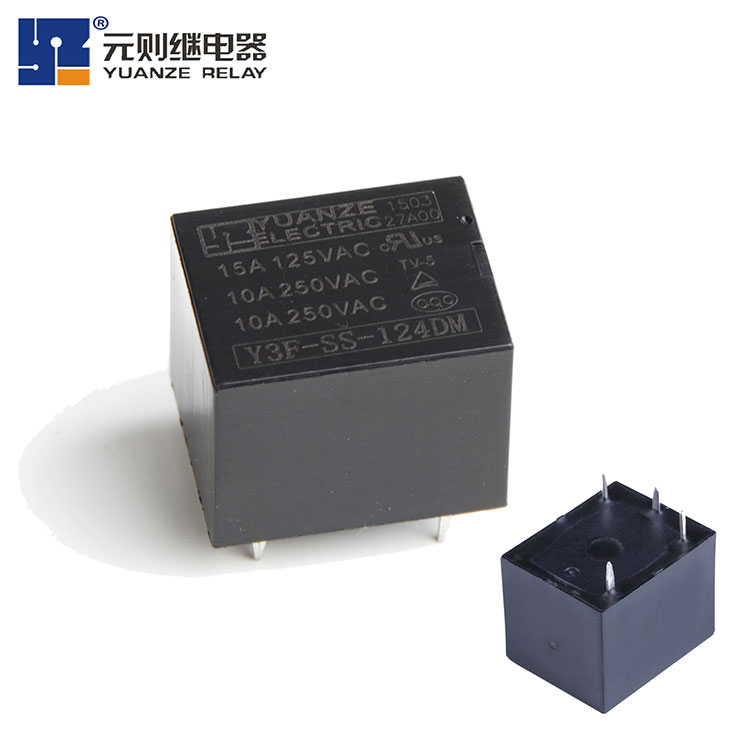

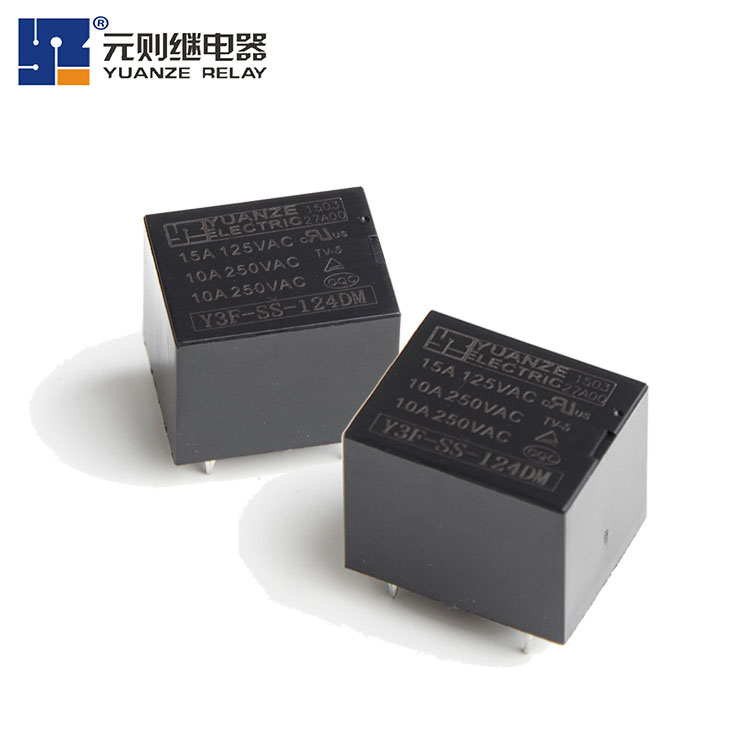

1、 24v小型继电器线圈参数Coil specification

(1)    额定电压Nominal voltage                          DC 24V

(2)    线圈阻抗Coil resistance                             1600Ω±10% (at 23±5℃)

(3)    额定电流Rated current                              DC 15mA±10% (at 23±5℃)

(4)    动作电压Operate voltage                           DC 18.0V Max ((at 23±5℃)

(5)    释放电压Release voltage                            DC 1.2V Min ((at 23±5℃)

(6)    最大电压Maximum voltage                        DC 31.2V(130% of nominal voltage)

(7)    线圈温升Coil temperature rise                    50K Max (Coil:24V)

2、24v小型继电器 触点参数Contact Specification

(1)    触点型式Contact configuration                   SPST-NO (1 Form A)--单刀单掷（一组常开）

(2)    触点额定负载Contact rating                     10A250VAC/30VDC (Resistive load)

15A 125VAC(Resistive load)；TV-5（tungsten钨灯负载）

(3)    接触电阻Contact resistance                        Initial（初始值） 100 mΩ Max (At DC6V1A)

(4)    动作时间Operate time                               15ms Max

(5)    释放时间Release time                                10ms Max

(6)    最大动作频率Maximum operating              Mechanically 18000 cycle/h（机械）

frequency                           Electrically  600 cycle/h（电气）

       (7) 触点温升Contact temperature rise               50K Max (Contact:10A)

3、24v小型继电器 通用参数General Specification

(1) 绝缘阻抗Insulation resistance                     1000MΩ Min (at DC500V)

(2) 电气强度Dielectric strength

触点间between open contacts                    1000VAC,50/60 HZ for 1Minute

       线圈与触点间between contacts and coil     1500VAC,50/60 HZ for 1 Minute

(3) 环境温度Ambient temperature                  -40℃～+105℃

(Not freezing and condensing at low temperature)

(4) 相对湿度Relative Humidity                       45% to 85% RH

(5) 电气寿命Electrical life                              100,000 Operations Min (at10A250VAC)

(6) 机械寿命Mechanical life                            10,000,000 operations Min

4、24v小型继电器 体系、安规认证和环保Quality System、Safety Certification and RoHS(REACH)

(1) UL certified                                                File NO. E341498；

                                                                     10A250VAC； 15A125VAC；  TV-5

(2) TUV certified                                             File No. R50197243

                                                                     10A250VAC；10A 30VDC

(3) CQC certified                                             File No. CQC11002056154

                                                                     10A250VAC；10A/6A250VAC

(4) ISO9001:2008 certified                               File No. 05311Q22581R0S

(5) RoHS and REACH Compliant
