RF连接器设计,生产,测试,使用技术
生产产品类型: 射频同轴连接器/同轴连接器/传输介质/RF通讯连接器/高频组件/天线延长线/传输线/ 转接头/转接线/射频连接线/RF连接线/射频转接线
影响射频同轴连接器性能的因素:
射频同轴连接器的品质: 设计 选材 加工 生产工艺标准 组装 电镀 每个环节都直接影响其可靠连接
应用范围(1): 无线通信和传输系统/室外AP接头
温度范围 Temp.range -40~+60°C
振 动 Vibration 100m/s2 (10~500Hz)
特性阻抗 Impedance 75Ω
频率范围 Frequency Range DC~1GHz
工作电压 Working Voltage 170V max (有效值)
耐 压 Withstand Voltage 500V rms (海平面有效值)
接触电阻 Contact resistance
内导体之间 Center Contact ≤ 10 mΩ
外导体之间 Outer Contact ≤ 5 mΩ
绝缘电阻 Insulation resistance ≥ 1000 MΩ
电压驻波比 VSWR 直式 Straight ≤ 1.20
弯式 Right angle ≤ 1.30
耐用性 Durability(mating) ≥500次(cycles)

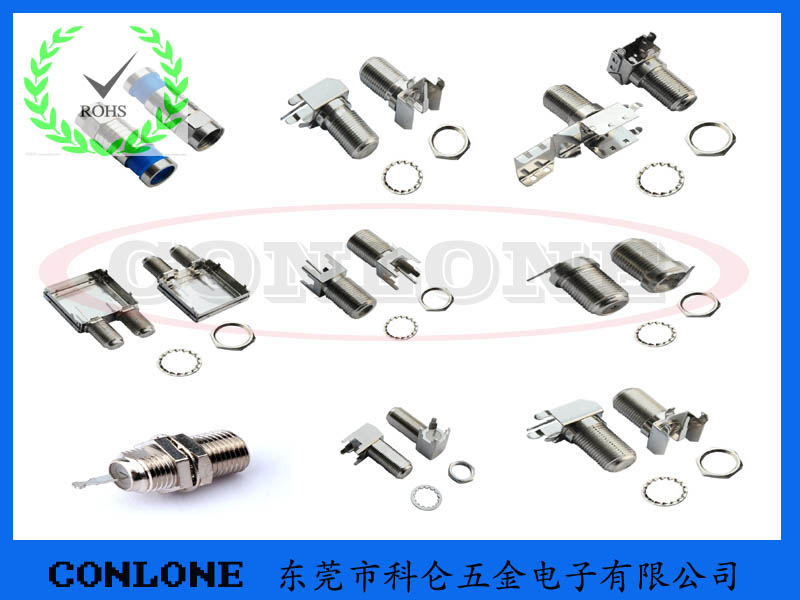

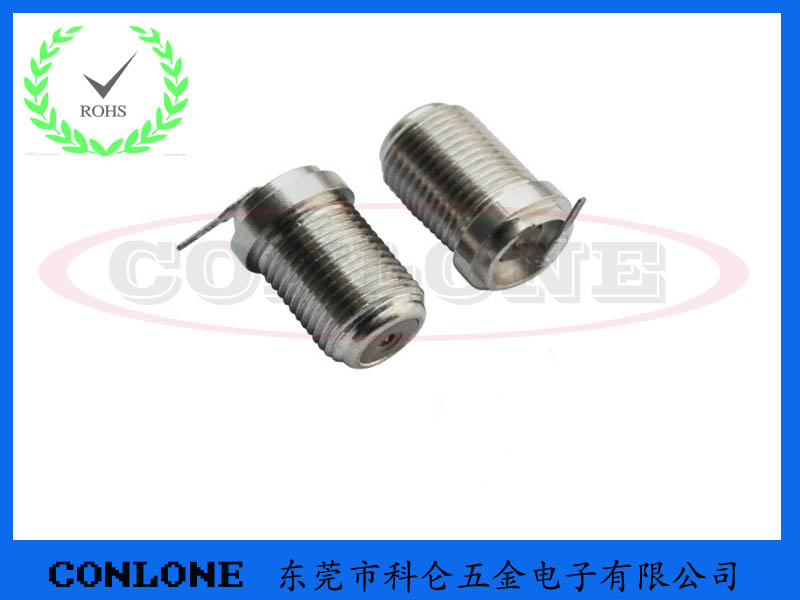

F型连接器可与国际上同类产品互换使用。FL10产品为M10X0.75螺纹,结构、性能与F型相同。
F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.
