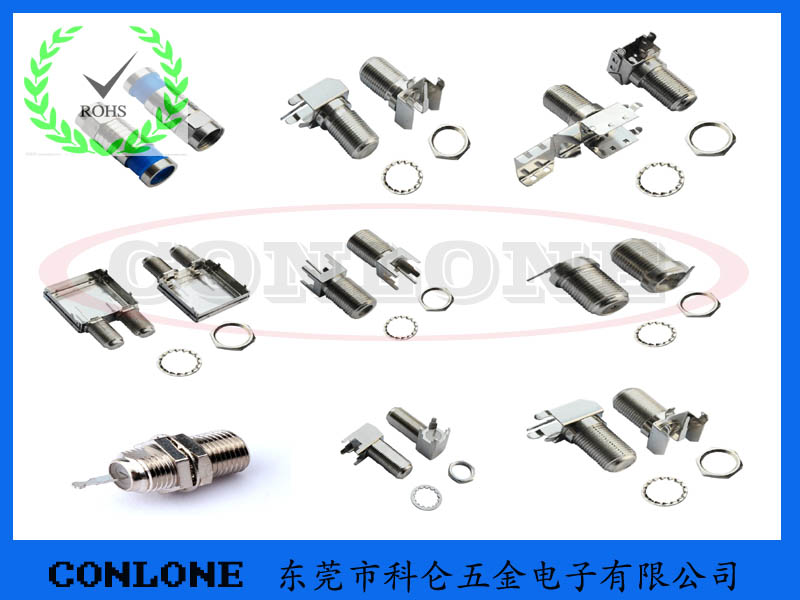

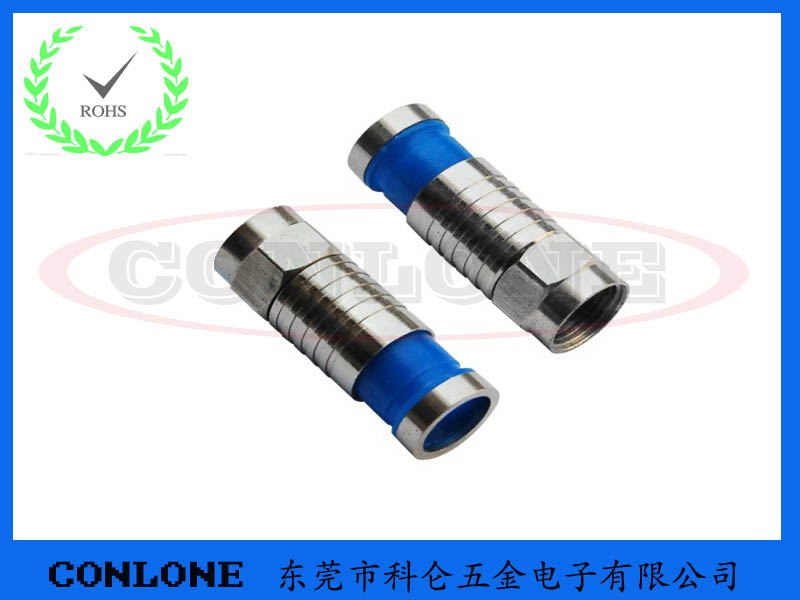

英制F公头焊线式带防水圈插座，英制F视频公头，英制F视频插座
F type joining devices use for 75Ωcable assign system, especially CATV, broadcast television network, It can already be used for having impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl , the price is suitable.
F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.
温度范围 Temp.range -40～+60°C
振 动 Vibration 100m/s2 (10～500Hz)
特性阻抗 Impedance 75Ω
频率范围 Frequency Range DC～1GHz
工作电压 Working Voltage 170V max (有效值)
耐 压 Withstand Voltage 500V rms (海平面有效值)
接触电阻 Contact resistance
内导体之间 Center Contact ≤ 10 mΩ
外导体之间 Outer Contact ≤ 5 mΩ
绝缘电阻 Insulation resistance ≥ 1000 MΩ
电压驻波比 VSWR 直式 Straight ≤ 1.20
弯式 Right angle ≤ 1.30
耐用性 Durability(mating) ≥500次（cycl
东莞市科仑电子有限公司成立于2008年，是一家集模具设计制造、五金冲压、五金压铸、产品组装、线材成型于一体的安防连接器专业厂家。 主要生产：射频同轴连接器、音视频连接器，共有十几个种类、上千种产品；公司生产系列有：BNC、F、SMA、SMB、MCX、MMCX、TNC、N、UHF、FME、1.6/5.6、CC4等同轴射频视频连接器。产品广泛应用于： 视频光端机，DVR,NVR,HD-SDI,高清数字矩阵，高清电视机顶盒，无线AP等安防监控领域，包含现在的智慧城市，物联网，平安中国等项目。
科仑电子，好品质，真诚为您服务到永远。
