英制F-KE贴片式插座,全铜F-KE偏腿式插座,英制全铜F四脚180度直插接头,全铜英制F-KE贴片式连接器

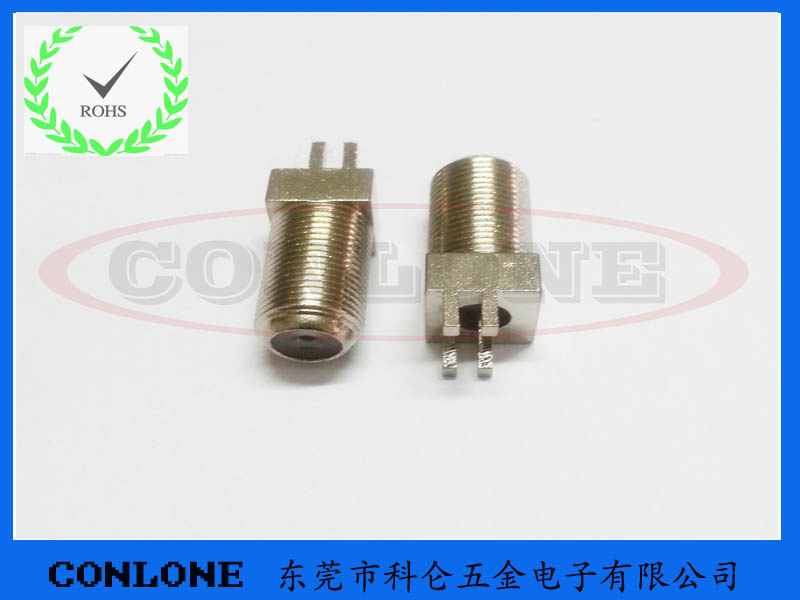

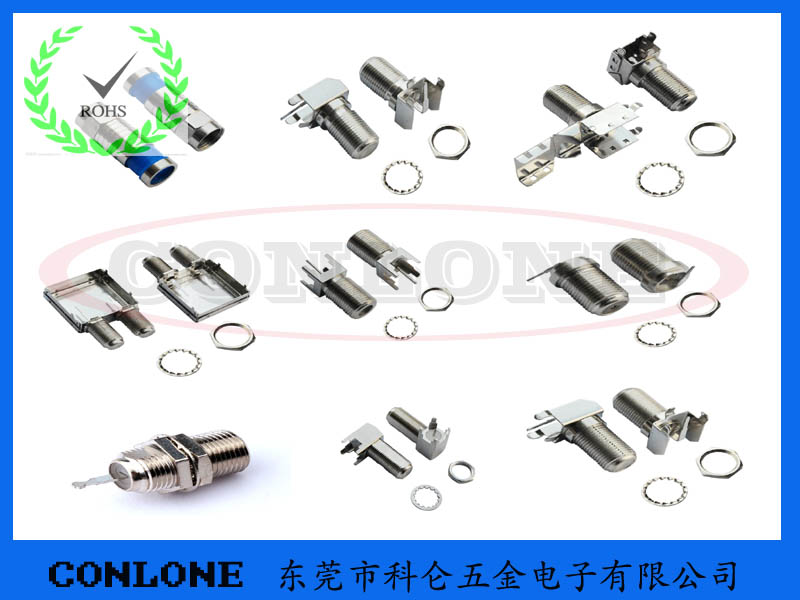

F type joining devices use for 75 Ω cable assign system, especially CATV, broadcast television network, It can already be used for having impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl , the price is suitable.
F型连接器可与国际上同类产品互换使用。FL10产品为M10X0.75螺纹,结构、性能与F型相同。
F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.
内导体之间 Center Contact ≤ 10 mΩ
外导体之间 Outer Contact ≤ 5 mΩ
绝缘电阻 Insulation resistance ≥ 1000 MΩ
电压驻波比 VSWR 直式 Straight ≤ 1.20
弯式 Right angle ≤ 1.30
耐用性 Durability(mating) ≥500次(cycl
es)
材料与涂覆 MATERIAL & PLATING
壳体 shell 黄铜 brass 镀亮镍 nickel plated
插针 contact pin 黄铜 brass 镀金或银 gold or silver plated
