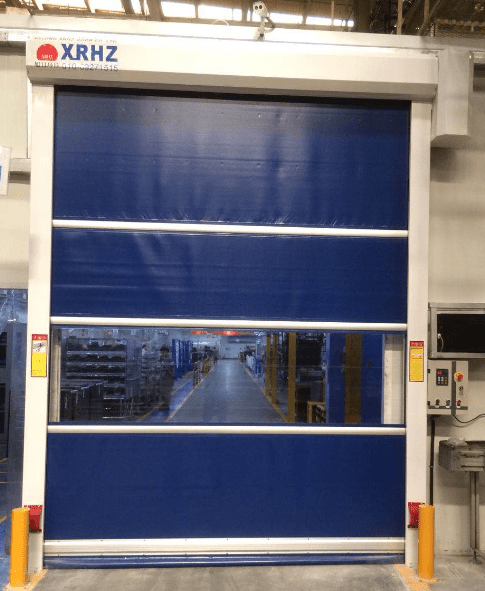

侧置电机快速卷帘门  Side motor fast shutter door

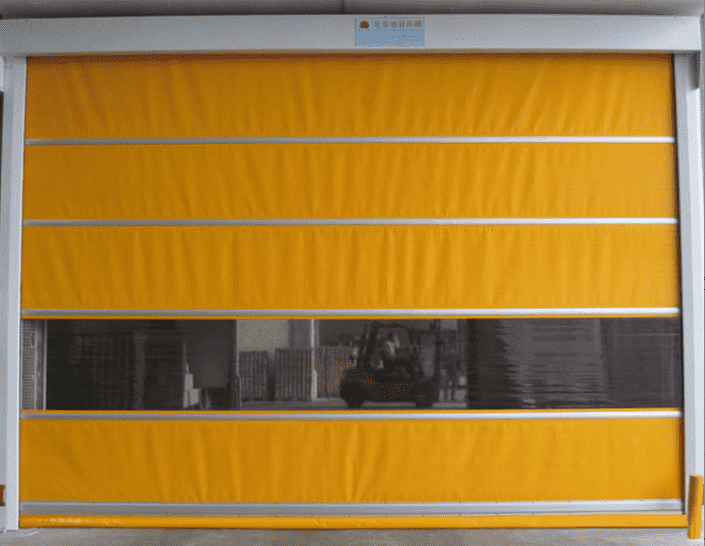

内置电机快速卷帘门 Built in motor fast shutter door

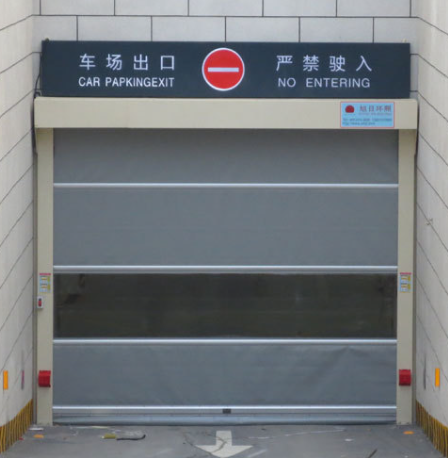

无肋筋快速卷帘门 Fast rolling door without ribs

产品特点：以卷轴的方式将门帘片卷到滚筒上，相对运行平稳，噪音小，控制方式灵活适用性广泛。

Product features: roll the door curtain onto the roller in the way of rolling, relatively stable operation, low noise, flexible control mode and wide applicability.

适用环境：Application environment:

工厂、食品、电子、纺织、医药、印刷、化工、物流仓储、洁净车间，商场、包装、地下车库、垃圾厂、特种车辆、消毒通道以及狭窄的车间通道等，开启关闭频率较高的工作环境。对防风、防尘、保温、降噪、恒温恒湿、隔离异味、节约能源等具有明显效果。

Factories, food, electronics, textile, medicine, printing, chemical industry, logistics and storage, clean workshops, shopping malls, packaging, underground garages, garbage plants, special vehicles, disinfection channels and narrow workshop channels, etc., open and close the working environment with high frequency. It has obvious effect on windproof, dustproof, heat preservation, noise reduction, constant temperature and humidity, odor isolation, energy saving, etc.

启闭速度:开启速度0.5-2.2米/秒，关闭速度0.3-1.2米/秒（根据实际使用环境决定开启速度，可通过变频器或控制板调节，此值为参考值）。并采用软启动设计，有效降低对减速机的冲击和噪音。

Opening and closing speed: the opening speed is 0.5-2.2 M / s, and the closing speed is 0.3-1.2 M / S (the opening speed is determined according to the actual use environment, which can be adjusted by the frequency converter or the control board, which is the reference value). The soft start design is adopted to effectively reduce the impact and noise to the reducer。

使用频率:启闭次数为800-1200次/天。

Frequency of use:Opening and closing times: 800-1200 times / day

安全措施:低压24VDC控制、红外线安全保护（或光幕）、防撞柱、透视窗、手动摇把、门帘运行灯闪烁或声音警示、压力气囊等（其中部分为选配件）

Security measures:Low-voltage 24VDC control , infrared security (or light curtains) , the anticollision column ,vision WINOOWs, manual handle, flashing of curtain running warning lights or sound alerts, pressure airbags( some of which is optional. )。

开启方式：按钮、雷达、地磁环、无线遥控、刷卡、指纹、光电、拉绳、ETC、车牌识别、人脸识别、AB门互锁以及组合式等开启方式。

Opening mode: button, radar, geomagnetic ring, wireless remote control, card swiping, fingerprint, photoelectricity, rope pulling, etc, license plate recognition, face recognition, AB door interlock and combined opening mode.

控制系统：主要部件由欧姆龙、西门子、三菱、海利普、台达等可编程控制器及安川、三菱、海利普、西门子、台达等变频器组成或采用步进电机控制器及伺服控制器。并通过增量式旋转编码器、机械行程限位编码器等方式定位。可外接多种辅助设备,并可与其他设备联动。

Control system: the main components are Omron, Siemens, Mitsubishi, hailip, Delta and other programmable controllers and frequency converters such as Yaskawa, Mitsubishi, hailip, Siemens, Delta, etc. or step motor controller and servo controller are used. It can be precisely located by incremental rotary encoder, mechanical stroke limit and absolute value encoder. It can be connected with a variety of auxiliary equipment and linked with other equipment.

动力性能：IP55 50Hz-60HZ旭日环照快速门电机、中日合资AEW电机或德国品牌电机及ABB电机等多种异步刹车电机或步进电机及伺服电机等多种品牌。电源电压为220V或380V。功率为0.75-5.5KW。断电制动或自锁，手动制动释放；制动电压220V。（根据门体大小及要求匹配）
