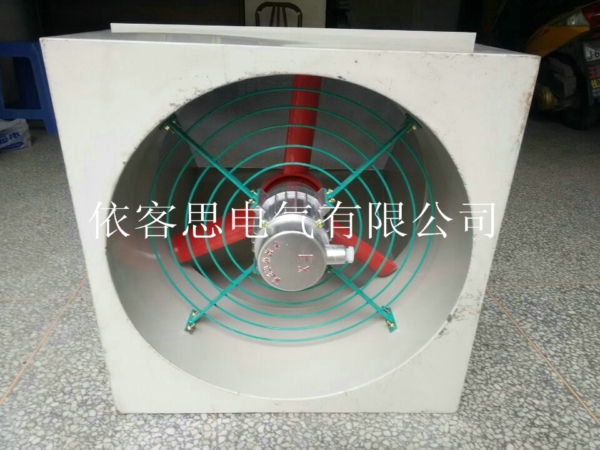

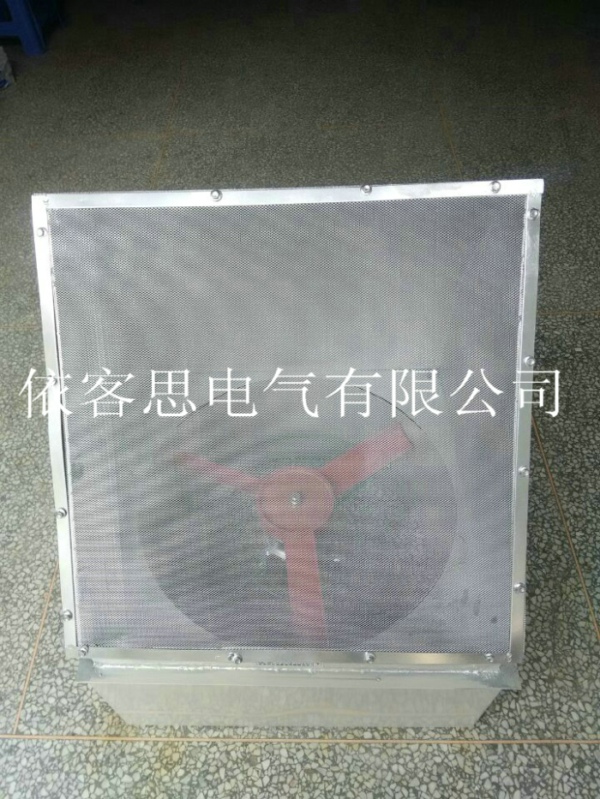

风机概述 边墙式厂用隔爆型防爆轴流风机WEXD-250D4
→风机的型号含义
→风机性能参数 边墙式厂用隔爆型防爆轴流风机WEXD-250D4
|
产品型号 |
风量m3/h |
静压Pa |
电压V |
频率Hz |
功率W |
电流A |
转速rpm |
电容μF |
|
WEXD-250D4 |
1700 |
50 |
380 |
50 |
60 |
0.15 |
1420 |
— |
|
WEXD-250E4 |
1500 |
50 |
220 |
50 |
60 |
0.25 |
1350 |
2 |
|
WEXD-300D4 |
1800 |
50 |
380 |
50 |
80 |
0.20 |
1400 |
— |
|
WEXD-300E4 |
1600 |
50 |
220 |
50 |
80 |
0.37 |
1380 |
3 |
|
WEXD-350D4 |
2800 |
50 |
380 |
50 |
125 |
0.35 |
1380 |
— |
|
WEXD-350E4 |
2200 |
50 |
220 |
50 |
125 |
0.53 |
1360 |
4 |
|
WEXD-400D4 |
3800 |
45 |
380 |
50 |
180 |
0.40 |
1400 |
— |
|
WEXD-400E4 |
3600 |
50 |
220 |
50 |
180 |
0.8 |
1400 |
6 |
|
WEXD-450D4 |
6500 |
50 |
380 |
50 |
250 |
0.52 |
1350 |
— |
|
WEXD-450E4 |
6300 |
50 |
220 |
50 |
250 |
1.15 |
1360 |
8 |
|
WEXD-500D4 |
7800 |
50 |
380 |
50 |
370 |
0.7 |
1350 |
— |
|
WEXD-500E4 |
7600 |
50 |
220 |
50 |
370 |
1.75 |
1200 |
12 |
|
WEXD-550D4 |
9300 |
50 |
380 |
50 |
550 |
1.2 |
1300 |
— |
|
WEXD-550E4 |
8300 |
50 |
220 |
50 |
550 |
2.1 |
1180 |
10 |
|
WEXD-600D4 |
12500 |
100 |
380 |
50 |
750 |
1.6 |
1380 |
— |
|
WEXD-650D4 |
16500 |
100 |
380 |
50 |
1900 |
3.5 |
1350 |
— |
|
WEXD-700D6 |
13000 |
50 |
380 |
50 |
1000 |
2.3 |
920 |
— |
|
WEXD-750D6 |
16200 |
50 |
380 |
50 |
1200 |
3.2 |
910 |
— |
|
WEXD-800D6 |
23000 |
75 |
380 |
50 |
1400 |
3.4 |
940 |
— |
|
WEXD-900D6 |
25000 |
75 |
380 |
50 |
1600 |
3.2 |
940 |
— |
→风机外形尺寸
|
产品型号 |
A |
L1 |
L2 |
B |
|
产品型号 |
侧墙开洞尺寸mm （正方形） |
|
WEXD-250D4/E4 |
320 |
200 |
295 |
290 |
|
WEXD-250D4/E4 |
340×340 |
|
WEXD-300D4/E4 |
370 |
200 |
325 |
340 |
|
WEXD-300D4/E4 |
390×390 |
|
WEXD-350D4/E4 |
420 |
240 |
360 |
390 |
|
WEXD-350D4/E4 |
440×440 |
|
WEXD-400D4/E4 |
470 |
260 |
400 |
440 |
|
WEXD-400D4/E4 |
490×490 |
|
WEXD-450D4/E4 |
520 |
260 |
430 |
490 |
|
WEXD-450D4/E4 |
540×540 |
|
WEXD-500D4/E4 |
570 |
260 |
470 |
540 |
|
WEXD-500D4/E4 |
590×590 |
|
WEXD-550D4/E4 |
620 |
280 |
495 |
590 |
|
WEXD-550D4/E4 |
640×640 |
|
WEXD-600D4 |
765 |
400 |
590 |
735 |
|
WEXD-600D4 |
790×790 |
|
WEXD-650D4 |
810 |
450 |
615 |
780 |
|
WEXD-650D4 |
835×835 |
|
WEXD-700D6 |
855 |
460 |
635 |
825 |
|
WEXD-700D6 |
880×880 |
|
WEXD-800D6 |
972 |
500 |
705 |
945 |
|
WEXD-800D6 |
1000×1000 |
|
WEXD-900D6 |
1075 |
500 |
755 |
1045 |
|
WEXD-900D6 |
1100×1100 |
|
|
